7203L12JG - Renesas Electronics

Description: The 7203 is a 2K x 9 dual-port FIFO memory that loads and empties data on a first-in/first-out basis. The device uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for those applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.

Download 7203L12JG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
7203L12JG - Renesas Electronics - PCB symbol
click to zoom

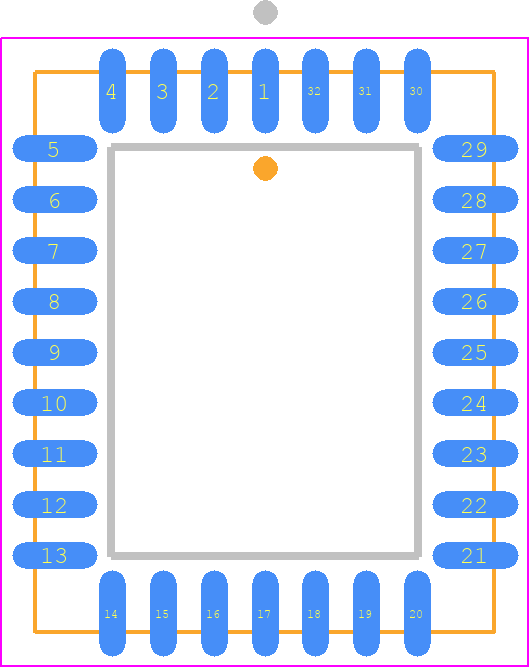

PCB Footprints
7203L12JG - Renesas Electronics PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - PLG32-ren1
click to zoom

7203L12JG Details

  • Manufacturer Part Number:

    7203L12JG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PLCC

  • Pin Count:

    32

  • Manufacturer Package Code:

    PLG32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    12 ns

  • Clock Frequency-Max (fCLK):

    50 MHz

  • Cycle Time:

    20 ns

  • JESD-30 Code:

    R-PQCC-J32

  • JESD-609 Code:

    e3

  • Length:

    13.9954 mm

  • Memory Density:

    18432 bit

  • Memory IC Type:

    BI-DIRECTIONAL FIFO

  • Memory Width:

    9

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    2KX9

  • Output Characteristics:

    3-STATE

  • Output Enable:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC32,.5X.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.556 mm

  • Standby Current-Max:

    0.012 A

  • Supply Current-Max:

    0.12 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.4554 mm

7203L12JG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 7203L12JG is 1.14V to 1.26V.
  • To ensure reliable operation in high-temperature environments, it is recommended to use a heat sink and ensure good thermal conductivity between the device and the heat sink. Additionally, the device should be operated within the recommended temperature range of -40°C to 125°C.
  • The maximum current rating for the 7203L12JG is 3A. However, it is recommended to operate the device within the recommended current range of 1A to 2A for optimal performance and reliability.
  • To handle ESD protection for the 7203L12JG, it is recommended to use ESD protection devices such as TVS diodes or ESD protection ICs on the input and output pins. Additionally, proper handling and storage procedures should be followed to prevent ESD damage.
  • The recommended PCB layout for the 7203L12JG includes using a 4-layer PCB with a solid ground plane, placing decoupling capacitors close to the device, and using short and wide traces for power and ground connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7203L12JG Overview

Use the download button to access the 7203L12JG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 7203L, or try a keyword search, such as FIFOs
