Description:The 7203 is a 2K x 9 dual-port FIFO memory that loads and empties data on a first-in/first-out basis. The device uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for those applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.
The recommended operating temperature range for the 7203L15JGI is -40°C to 125°C, but it can tolerate storage temperatures from -55°C to 150°C.
To ensure reliable communication, use proper shielding, grounding, and decoupling techniques. Additionally, consider using differential signaling, such as RS-485, and implement error-checking mechanisms like CRC or checksums.
The maximum clock frequency supported by the 7203L15JGI is 15 MHz, but it can be operated at lower frequencies depending on the application requirements.
To configure the 7203L15JGI for low-power operation, use the power-down mode (PD) and idle mode (IDLE) features. Additionally, consider using a low-frequency clock, reducing the voltage supply, and minimizing the number of active peripherals.
When designing a PCB with the 7203L15JGI, ensure proper signal routing, decoupling, and grounding. Keep sensitive analog signals away from digital signals, and use a solid ground plane to reduce noise and EMI.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7203L15JGI Overview

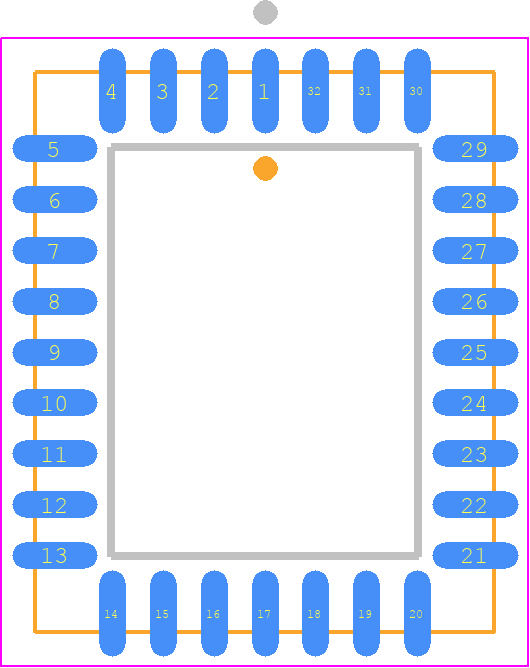

Use the download button to access the 7203L15JGI schematic symbol and PCB footprint.
