7205L12PDG - Renesas Electronics

7205L12PDG Details

• Manufacturer Part Number:

  7205L12PDG

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  PDIP

• Pin Count:

  28

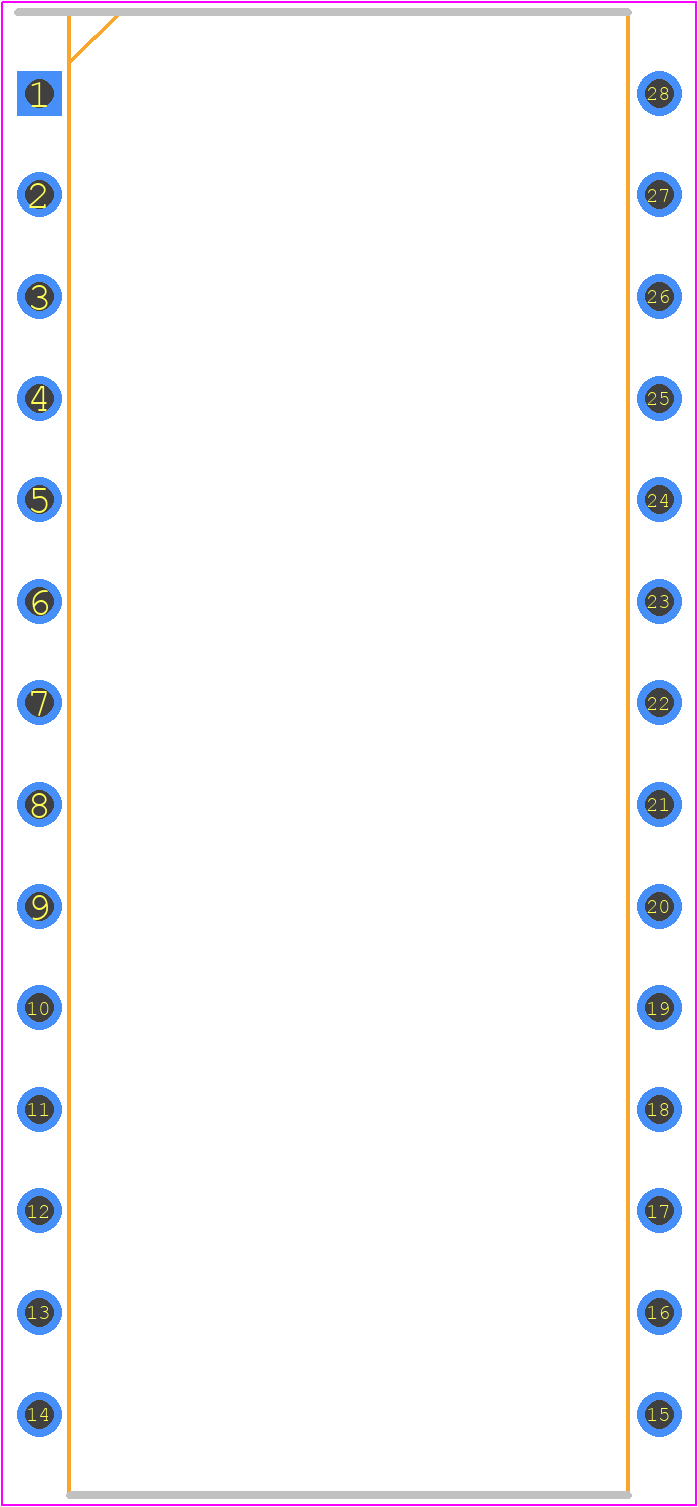

• Manufacturer Package Code:

  PDG28

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.71

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Access Time-Max:

  12 ns

• Clock Frequency-Max (fCLK):

  50 MHz

• Cycle Time:

  20 ns

• JESD-30 Code:

  R-PDIP-T28

• JESD-609 Code:

  e3

• Memory Density:

  73728 bit

• Memory IC Type:

  BI-DIRECTIONAL FIFO

• Memory Width:

  9

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  28

• Number of Words:

  8192 words

• Number of Words Code:

  8000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  8KX9

• Output Characteristics:

  3-STATE

• Output Enable:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Standby Current-Max:

  0.012 A

• Supply Current-Max:

  0.12 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30
