Description:The 7206 is a 16K x 9 dual-port FIFO memory that loads and empties data on a first-in/first-out basis. The device uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for those applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a suitable heat sink, and consider using thermal interface materials (TIMs) to improve heat transfer. Additionally, ensure that the device is properly soldered and that the PCB is designed to minimize thermal stress.
Operating the device at the maximum junction temperature (Tj) of 150°C may reduce its lifespan and reliability. It's recommended to operate the device at a lower temperature to ensure optimal performance and longevity. Consult the datasheet and application notes for guidance on thermal management.
Yes, the 7206L15JG is AEC-Q100 qualified, making it suitable for automotive applications. However, ensure that the device meets the specific requirements of your application, including temperature range, voltage, and other environmental factors.
To troubleshoot issues related to the internal voltage regulator, check the input voltage, output voltage, and current consumption. Ensure that the input voltage is within the recommended range, and that the output voltage is stable. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7206L15JG Overview

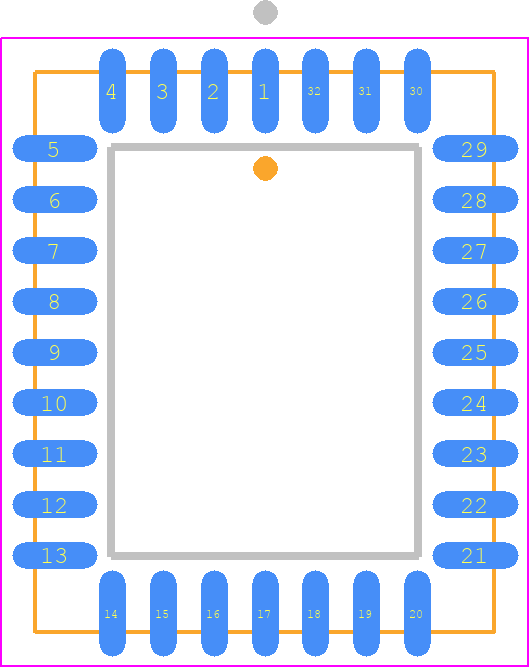

Use the download button to access the 7206L15JG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 7206L,
or try a keyword search, such as FIFOs
