The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to follow the manufacturer's guidelines to avoid damaging the connector or PCB.
Yes, the 722-139 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and screwing to prevent loosening or damage. WAGO recommends following the IEC 61373 standard for vibration testing.
The 722-139 connector is rated for operating temperatures between -40°C and 125°C, and can withstand humidities up to 95% RH. However, it's essential to consider the specific environmental conditions of your application and consult WAGO's environmental testing data for more information.
While the 722-139 connector is optimized for AWG 20-24 wires, it can accommodate smaller or larger wires with some limitations. Consult WAGO's wire size chart and follow their guidelines for wire stripping and termination to ensure reliable connections.
To ensure reliable connections, follow WAGO's recommended wire stripping and termination procedures, and use the correct screwdriver to avoid damaging the connector. Additionally, consider using WAGO's wire-to-board connectors with built-in wire clamps or screw locks for added security.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
722-139 Overview

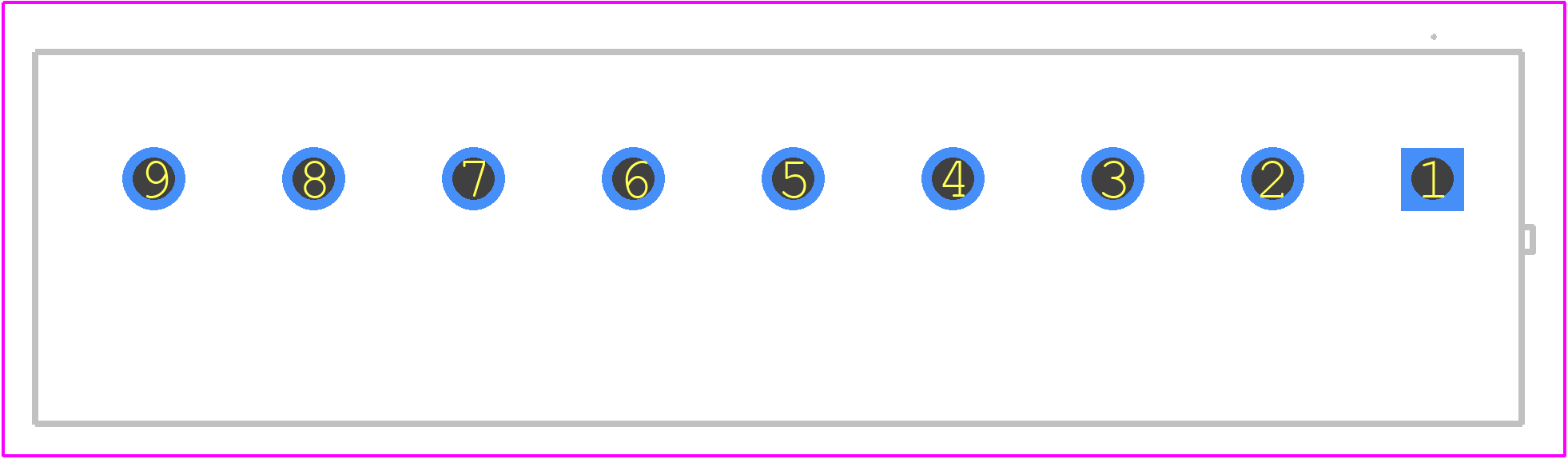

Use the download button to access the 722-139 schematic symbol, PCB footprint, and 3D model.
