72T18105L5BB - Renesas Electronics

72T18105L5BB Details

• Manufacturer Part Number:

  72T18105L5BB

• Brand Name:

  Renesas

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  PBGA

• Pin Count:

  240

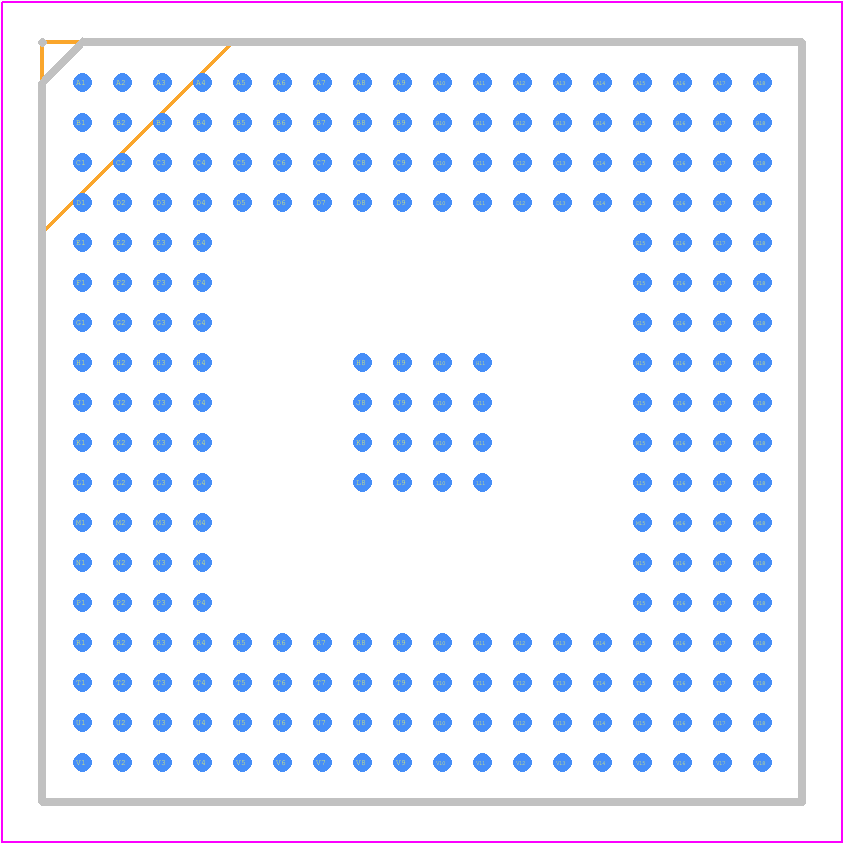

• Manufacturer Package Code:

  BB240

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.71

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Access Time-Max:

  3.6 ns

• Additional Feature:

  ALTERNATIVE MEMORY WIDTH 9; ASYNCHRONOUS OPERATION ALSO POSSIBLE

• Alternate Memory Width:

  9

• Clock Frequency-Max (fCLK):

  200 MHz

• Cycle Time:

  5 ns

• JESD-30 Code:

  S-PBGA-B240

• JESD-609 Code:

  e0

• Length:

  19 mm

• Memory Density:

  2359296 bit

• Memory IC Type:

  OTHER FIFO

• Memory Width:

  18

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  240

• Number of Words:

  131072 words

• Number of Words Code:

  128000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  128KX18

• Output Characteristics:

  3-STATE

• Output Enable:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA240,18X18,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  225

• Qualification Status:

  Not Qualified

• Standby Current-Max:

  0.06 A

• Supply Current-Max:

  0.07 mA

• Supply Voltage-Max (Vsup):

  2.625 V

• Supply Voltage-Min (Vsup):

  2.375 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  19 mm
