72T7285L4-4BBG - Renesas Electronics

72T7285L4-4BBG Details

• Manufacturer Part Number:

  72T7285L4-4BBG

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

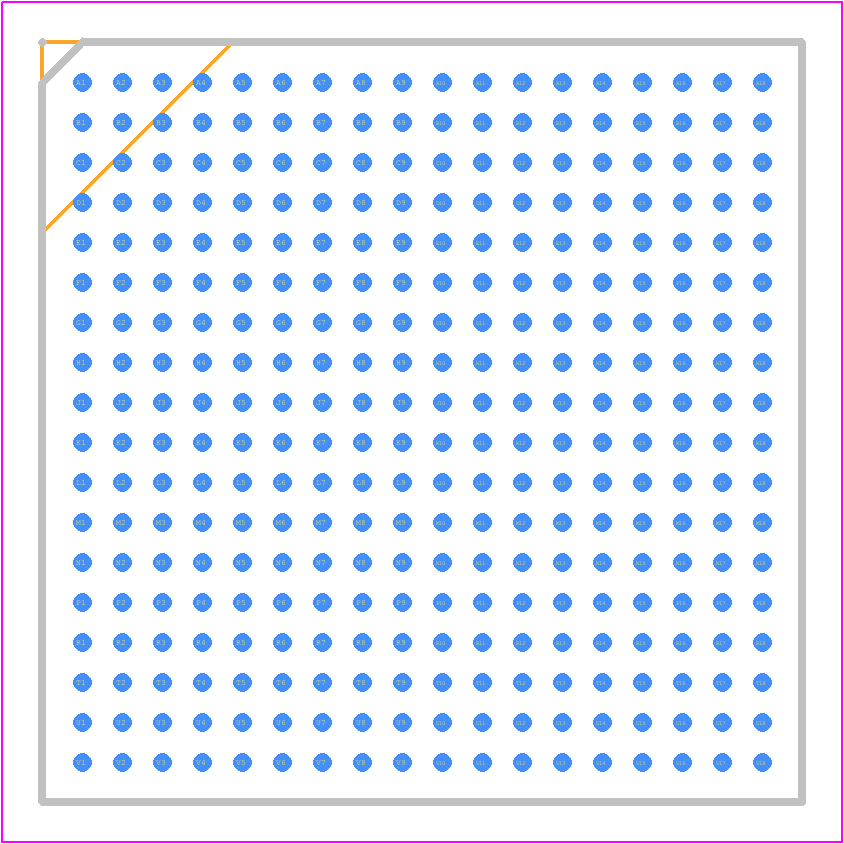

• Part Package Code:

  PBGA

• Pin Count:

  324

• Manufacturer Package Code:

  BBG324

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.71

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Access Time-Max:

  3.4 ns

• Additional Feature:

  ASYNCHRONOUS OPERATION ALSO POSSIBLE

• Clock Frequency-Max (fCLK):

  225 MHz

• Cycle Time:

  4.44 ns

• JESD-30 Code:

  S-PBGA-B324

• JESD-609 Code:

  e1

• Length:

  19 mm

• Memory Density:

  1179648 bit

• Memory IC Type:

  OTHER FIFO

• Memory Width:

  72

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  324

• Number of Words:

  16384 words

• Number of Words Code:

  16000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  16KX72

• Output Enable:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA324,18X18,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.97 mm

• Standby Current-Max:

  0.02 A

• Supply Current-Max:

  0.13 mA

• Supply Voltage-Max (Vsup):

  2.625 V

• Supply Voltage-Min (Vsup):

  2.375 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  19 mm
