72V02L25JGI - Renesas Electronics

Description: The 72V02 is a 1K x 9 dual-port FIFO that operates at Vcc between 3.0V and 3.6V. The device will load and empty data on a first-in/first-out basis. It uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.

Download 72V02L25JGI Model

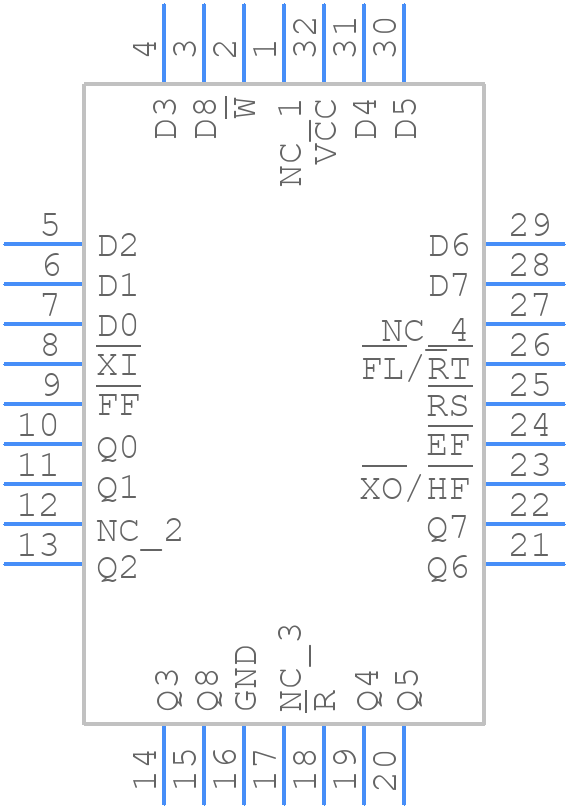

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

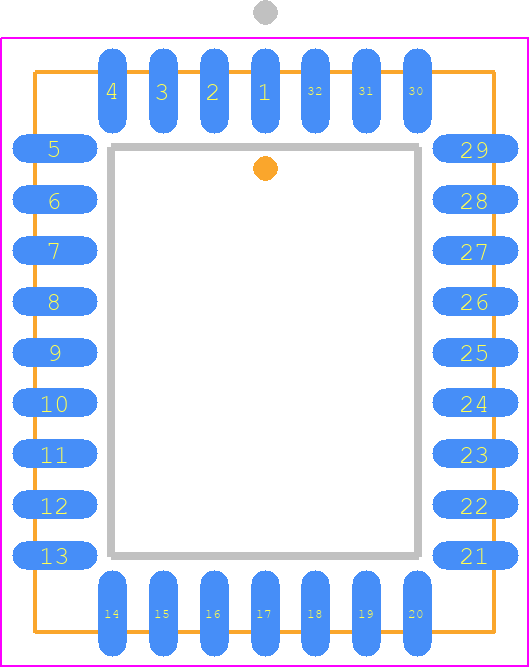

72V02L25JGI - Renesas Electronics PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - plg32
click to zoom
3D Models
72V02L25JGI - Renesas Electronics  - 3D model - Plastic Leaded Chip Carrier - plg32
click to zoom

72V02L25JGI Details

  • Manufacturer Part Number:

    72V02L25JGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PLCC

  • Pin Count:

    32

  • Manufacturer Package Code:

    PLG32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    25 ns

  • Cycle Time:

    35 ns

  • JESD-30 Code:

    R-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    13.97 mm

  • Memory Density:

    9216 bit

  • Memory IC Type:

    OTHER FIFO

  • Memory Width:

    9

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    1024 words

  • Number of Words Code:

    1000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1KX9

  • Output Characteristics:

    3-STATE

  • Output Enable:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC32,.45X.55

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.79 mm

  • Standby Current-Max:

    0.005 A

  • Supply Current-Max:

    0.06 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.43 mm

72V02L25JGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions and trigger a shutdown or warning signal. The datasheet provides guidelines for selecting the current sense resistor value.
  • According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 4.5V to prevent damage to the internal voltage regulator. A soft-start circuit or a voltage supervisor can be used to ensure a controlled power-up sequence.
  • Renesas provides EMC guidelines in their application notes, including recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with relevant standards.
  • The recommended operating temperature range for the 72V02L25JGI is -40°C to 125°C, as specified in the datasheet. However, it's essential to consider the specific application requirements and ensure that the device operates within the recommended temperature range to maintain reliability and performance.
