72V241L10PFG - Renesas Electronics

Description: The 72V241 is a 4K x 9 First-In, First-Out memory with clocked read and write controls. It is a 3.3V version of the 72241 device and is applicable for a wide variety of data buffering needs such as graphics, local area networks and interprocessor communication. It has 9-bit input and output ports. The Read Clock can be tied to the Write Clock for single clock operation or the two clocks can run asynchronous of one another for dualclock operation.

Download 72V241L10PFG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

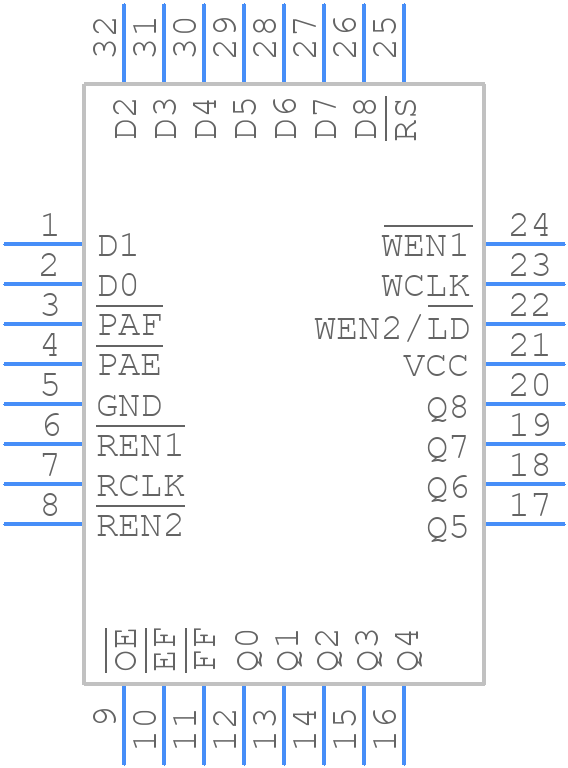

72V241L10PFG - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
72V241L10PFG - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PRG32-1
click to zoom
3D Models
72V241L10PFG - Renesas Electronics - 3D model - Quad Flat Packages - PRG32-1
click to zoom

72V241L10PFG Details

  • Manufacturer Part Number:

    72V241L10PFG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TQFP

  • Pin Count:

    32

  • Manufacturer Package Code:

    PRG32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    6.5 ns

  • Clock Frequency-Max (fCLK):

    100 MHz

  • Cycle Time:

    10 ns

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Memory Density:

    36864 bit

  • Memory IC Type:

    OTHER FIFO

  • Memory Width:

    9

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    4096 words

  • Number of Words Code:

    4000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    4KX9

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Standby Current-Max:

    0.005 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

72V241L10PFG Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 72V241L10PFG is -40°C to 125°C.
  • The 72V241L10PFG has a built-in POR and BOR circuitry. The POR is triggered when the power supply voltage (VCC) rises above 1.5V, and the BOR is triggered when the VCC falls below 1.5V. You can use external resistors and capacitors to adjust the POR and BOR thresholds.
  • The maximum clock frequency supported by the 72V241L10PFG is 20 MHz.
  • To configure the 72V241L10PFG for low-power operation, you can use the power-down mode, idle mode, or stop mode. You can also adjust the clock frequency and voltage regulator settings to minimize power consumption.
  • The maximum current consumption of the 72V241L10PFG is 15 mA at 20 MHz clock frequency and 3.3V supply voltage.
