73171-1360 footprint, schematic symbol and 3D model by Molex

Symbol

click to zoom

PCB Footprints

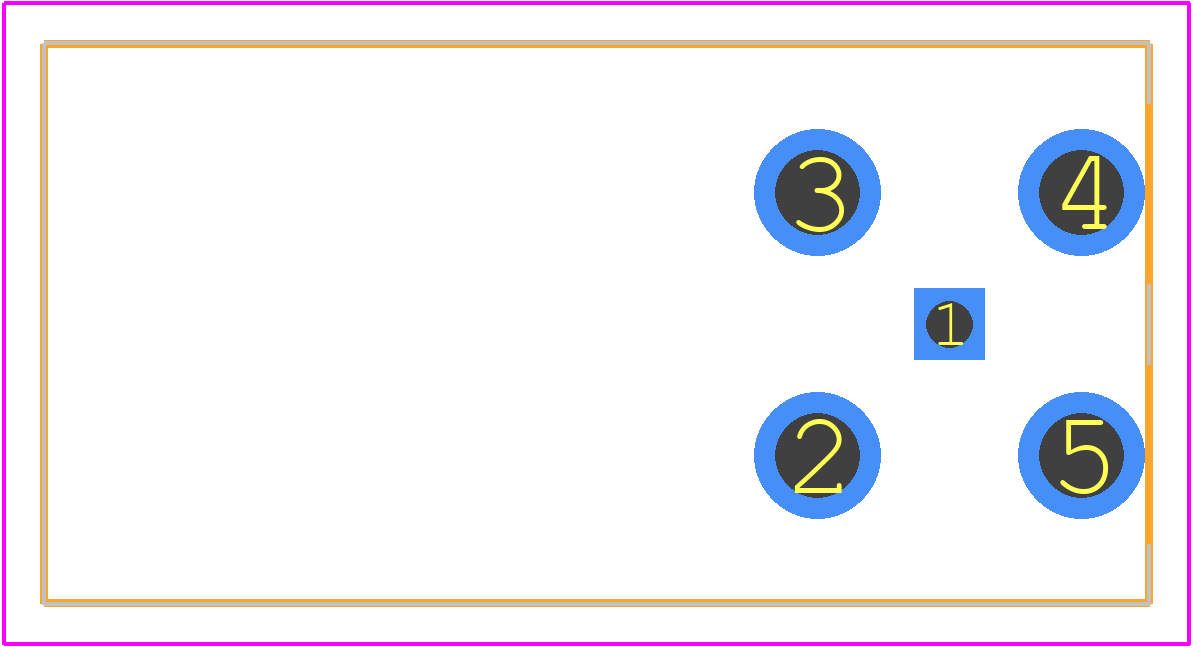

73171-1360 - Molex PCB footprint - Other - Other - 73171-1360-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 73171-1360
Part Number 73171-1360
Manufacturer Molex
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - 73171-1360-1
Released Date Jun 2, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

73171-1360 Details

Manufacturer Part Number:
73171-1360
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Factory Lead Time:
10 Weeks
Manufacturer:
Molex
YTEOL:
8
Body Breadth:
0.432 inch
Body Depth:
1.088 inch
Body Diameter:
0.505 inch
Body/Shell Style:
JACK
Characteristic Impedance:
50 Ω
Connector Type:
RF BNC CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Style:
COAX
Coupling Type:
BAYONET
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYTETRAFLUOROETHYLENE
MIL Conformance:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Number of Ports:
1
Operating Frequency-Max:
4 GHz
Option:
GENERAL PURPOSE
Panel Mount:
YES
Shell Finish:
TIN
Shell Material:
ZINC ALLOY
Terminal Length:
0.131 inch
Termination Type:
SOLDER
Total Number of Contacts:
1

73171-1360 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 73171-1360 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
The 73171-1360 connector has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 73171-1360 connector. However, it's crucial to ensure the wire size and insulation meet the connector's specifications and that the connection is reliable and secure.
Yes, it's essential to follow proper PCB layout guidelines for the 73171-1360 connector, including maintaining a minimum clearance of 1.5 mm between the connector and other components, and ensuring the PCB material can withstand the connector's operating temperature range.
