73171-1640 footprint, schematic symbol and 3D model by Molex

Symbol

click to zoom

PCB Footprints

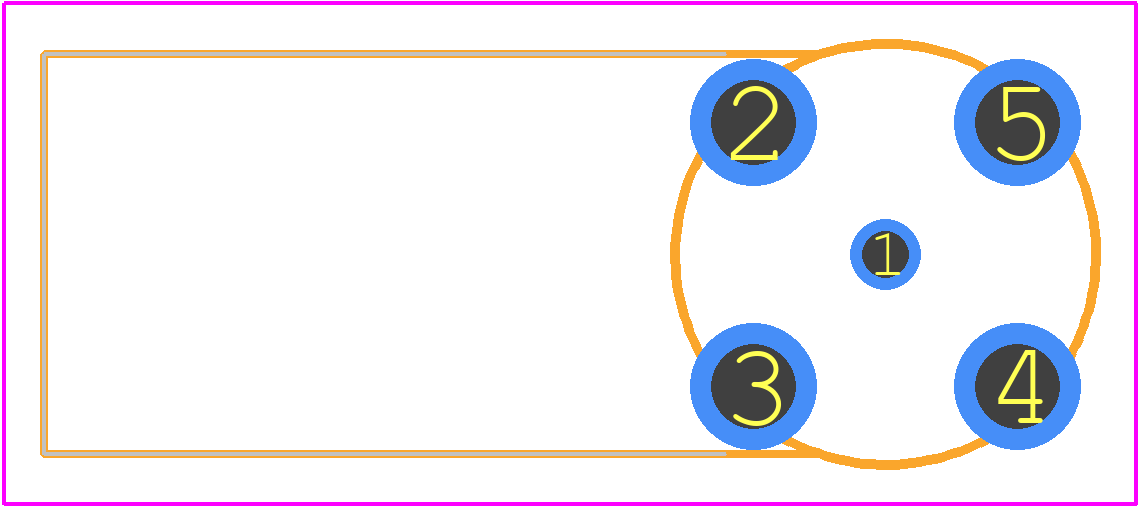

73171-1640 - Molex PCB footprint - Other - Other - 73171-1640-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 73171-1640
Part Number 73171-1640
Manufacturer Molex
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - 73171-1640-1
Released Date Nov 6, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

73171-1640 Details

Manufacturer Part Number:
73171-1640
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Factory Lead Time:
10 Weeks
Manufacturer:
Molex
YTEOL:
7
Body/Shell Style:
JACK
Characteristic Impedance:
75 Ω
Connector Type:
RF BNC CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED
Contact Style:
COAX
Coupling Type:
BAYONET
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Termination Type:
SOLDER
Total Number of Contacts:
1

73171-1640 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
Yes, the 73171-1640 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
The operating temperature range for the 73171-1640 is -40°C to 105°C (-40°F to 221°F).
Yes, the 73171-1640 is designed for outdoor use and can withstand exposure to moisture and humidity.
No, the 73171-1640 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.

Trust Checks

Expert Contribution

System Verified

Community Approved

73171-1640 Overview

Use the download button to access the 73171-1640 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 73171, or try a keyword search, such as RF BNC Connectors
