732-8254-23 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

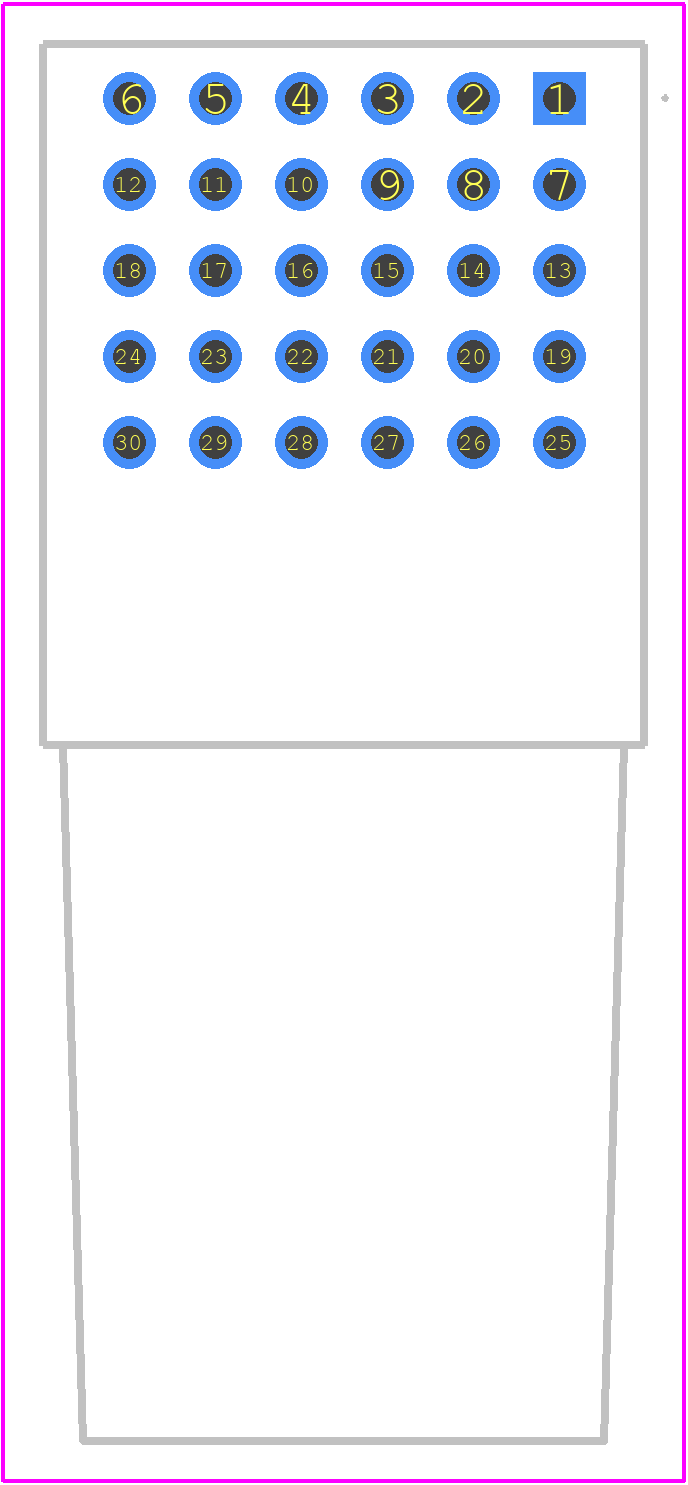

732-8254-23 - TE Connectivity PCB footprint - Other - Other - 732-8254-23-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 732-8254-23
Part Number 732-8254-23
Manufacturer TE Connectivity
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - 732-8254-23-2
Released Date Jan 9, 2024
Last Modified Date Apr 10, 2024 11:03 AM UTC
Pinout / Pin List Click Here (Member Only)

732-8254-23 Details

Manufacturer Part Number:
732-8254-23
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
15 Weeks, 2 Days
Manufacturer:
TE Connectivity
Connector Type:
TELECOM AND DATACOM CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
5A
Mixed Contacts:
NO
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Current (Signal):
5 A
Terminal Pitch:
2.15 mm
Total Number of Contacts:
30

732-8254-23 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
Yes, the 732-8254-23 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
The 732-8254-23 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection of the connector when used in outdoor environments to maintain its performance and reliability.
The 732-8254-23 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
Yes, the 732-8254-23 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors. However, it's essential to verify compatibility and ensure proper mating and performance before using the connector with other products.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

732-8254-23 Overview

Use the download button to access the 732-8254-23 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 732-8, or try a keyword search, such as Telecom and Datacom Connectors
