734-170 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; angled; 100% protected against mismating; Pin spacing 3.5 mm; 10-pole

Download 734-170 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
734-170 - Wago - PCB symbol
click to zoom
PCB Footprints

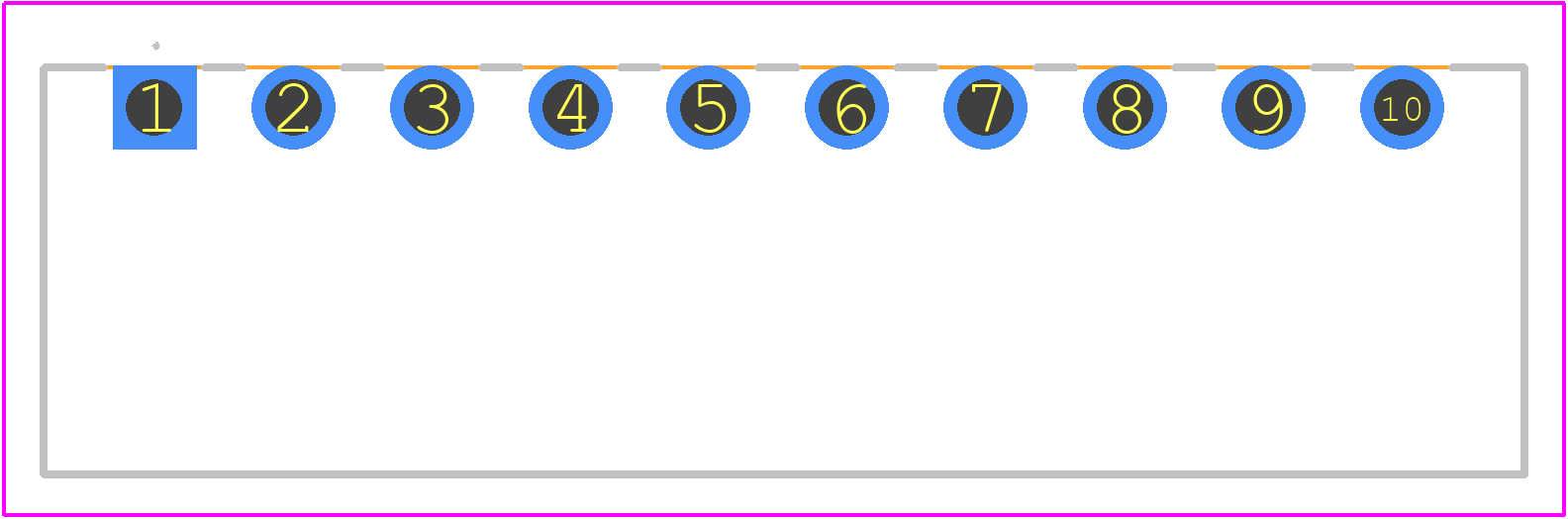

734-170 - Wago PCB footprint - Other - Other - 734-170-1
click to zoom
3D Models
734-170 - Wago - 3D model - Other - 734-170-1
click to zoom

734-170 Details

  • Manufacturer Part Number:

    734-170

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: 94V-0; POLYAMIDE66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Packing Method:

    BOX

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; EN; IEC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
