734-263 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; angled; 100% protected against mismating; Pin spacing 3.81 mm; 3-pole

Download 734-263 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

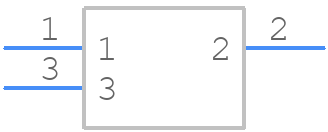

734-263 - Wago - PCB symbol
click to zoom
PCB Footprints

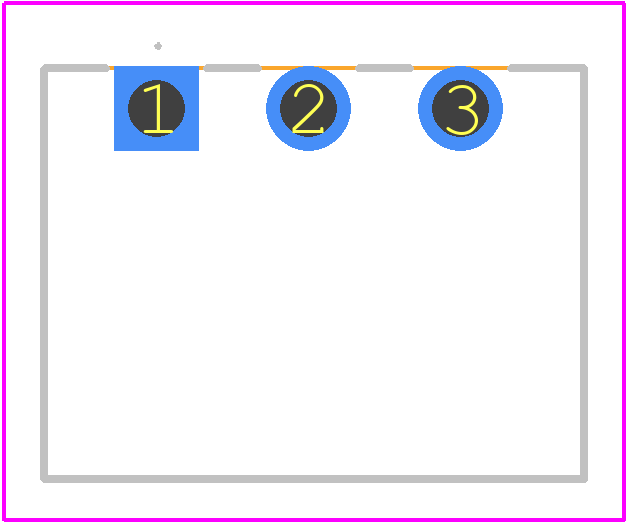

734-263 - Wago PCB footprint - Other - Other - 734-263-3
click to zoom
3D Models
734-263 - Wago - 3D model - Other - 734-263-3
click to zoom

734-263 Details

  • Manufacturer Part Number:

    734-263

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    SAFETY APPROVAL: KEUR; LR; UL

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Packing Method:

    BOX

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CB; CSA; DNVGL; EN; IEC; KEMA

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

734-263 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 734-263 connector is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the 734-263 connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 734-263 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6).
  • The operating temperature range of the 734-263 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 734-263 connector meets the requirements of UL 1977 and UL 498 standards.
