734-270 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; angled; 100% protected against mismating; Pin spacing 3.81 mm; 10-pole

Download 734-270 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
734-270 - Wago - PCB symbol
click to zoom
PCB Footprints

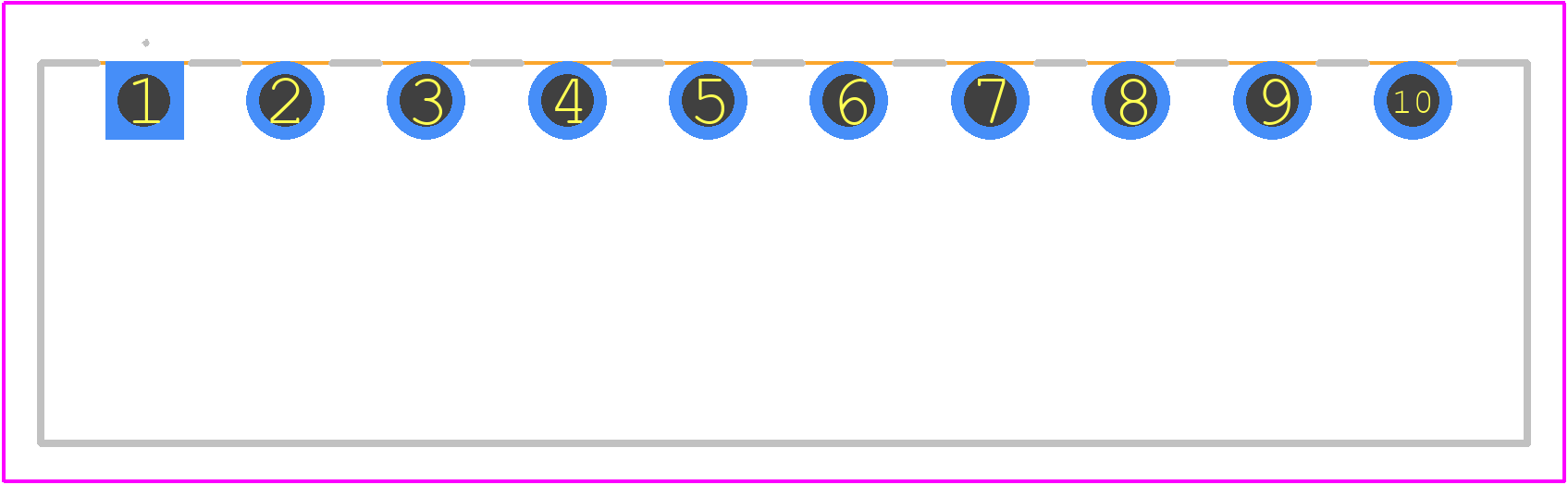

734-270 - Wago PCB footprint - Other - Other - 734-270-4
click to zoom
3D Models
734-270 - Wago - 3D model - Other - 734-270-4
click to zoom

734-270 Details

  • Manufacturer Part Number:

    734-270

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    SAFETY APPROVAL: KEUR; LR; UL

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Packing Method:

    BOX

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CB; CSA; DNVGL; EN; IEC; KEMA

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

734-270 Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs) to ensure reliable connections.
  • Yes, the 734-270 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the 734-270 connector is rated IP67, making it suitable for outdoor use and providing protection against dust and water ingress.
  • Yes, the 734-270 connector is designed to accept stranded wire, but it's essential to follow the manufacturer's guidelines for wire preparation and termination to ensure reliable connections.
  • The 734-270 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
