73403-5123 - Molex

Description: RF Connectors / Coaxial Connectors FAKRA SMB JACK RA TH RUHOLE KEY OPT N

Download 73403-5123 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
73403-5123 - Molex - PCB symbol
click to zoom
PCB Footprints

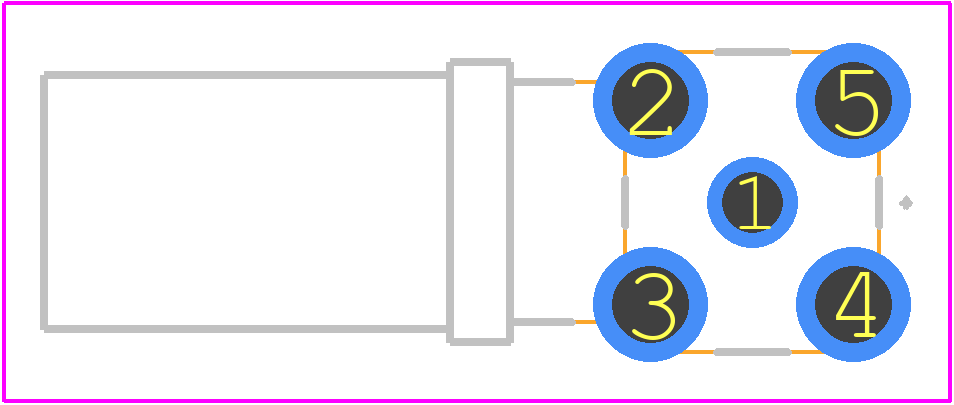

73403-5123 - Molex PCB footprint - Other - Other - 73403-5123-4
click to zoom
3D Models
73403-5123 - Molex - 3D model - Other - 73403-5123-4
click to zoom

73403-5123 Details

  • Manufacturer Part Number:

    73403-5123

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Molex

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

73403-5123 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 73403-5123 is designed to withstand vibrations up to 10G (ISO 16750-3) and is suitable for use in high-vibration environments.
  • Yes, the 73403-5123 meets the requirements of the automotive industry, including temperature range, vibration, and electrical performance.
  • The maximum operating temperature for the 73403-5123 is 125°C (257°F).
  • Yes, the 73403-5123 has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1m (3.3ft) for 30 minutes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

73403-5123 Overview

Use the download button to access the 73403-5123 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 73403, or try a keyword search, such as RF SMB/SSMB Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
