- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 73415-2980
- Part Number 73415-2980
- Manufacturer Molex
- Pin Count 6
- Part Category Connector
- Package Category Other
- Footprint Name Other - 73415-2980-1
- Released Date Nov 20, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
73415-2980 Details
-
Manufacturer Part Number:
73415-2980
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Factory Lead Time:
11 Weeks
-
Manufacturer:
Molex
-
YTEOL:
8
-
Body Breadth:
1.201 inch
-
Body Depth:
1.31 inch
73415-2980 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 73415-2980 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
-
The 73415-2980 connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to ensure the connector remains protected in harsh environments.
-
The 73415-2980 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
-
While the 73415-2980 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's essential to consult with Molex or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the required performance and safety standards.
Trust Checks
Expert Contribution
System Verified
Community Approved
73415-2980 Overview

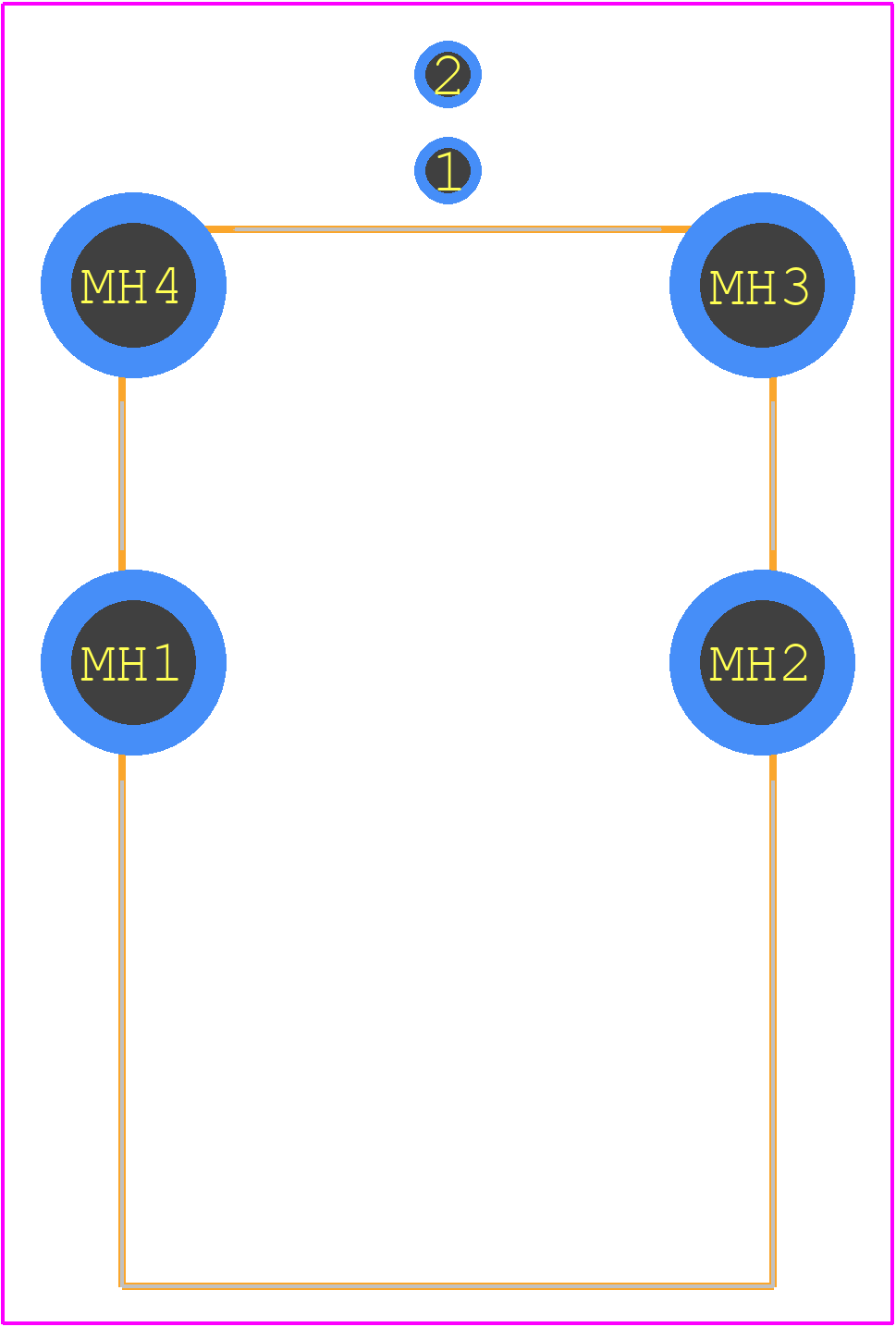

Use the download button to access the 73415-2980 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 73415,
or try a keyword search, such as RF BNC Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
