736-104 - Wago

Description: Double-deck PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 8-pole; CAGE CLAMP®

Download 736-104 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
736-104 - Wago - PCB symbol
click to zoom
PCB Footprints

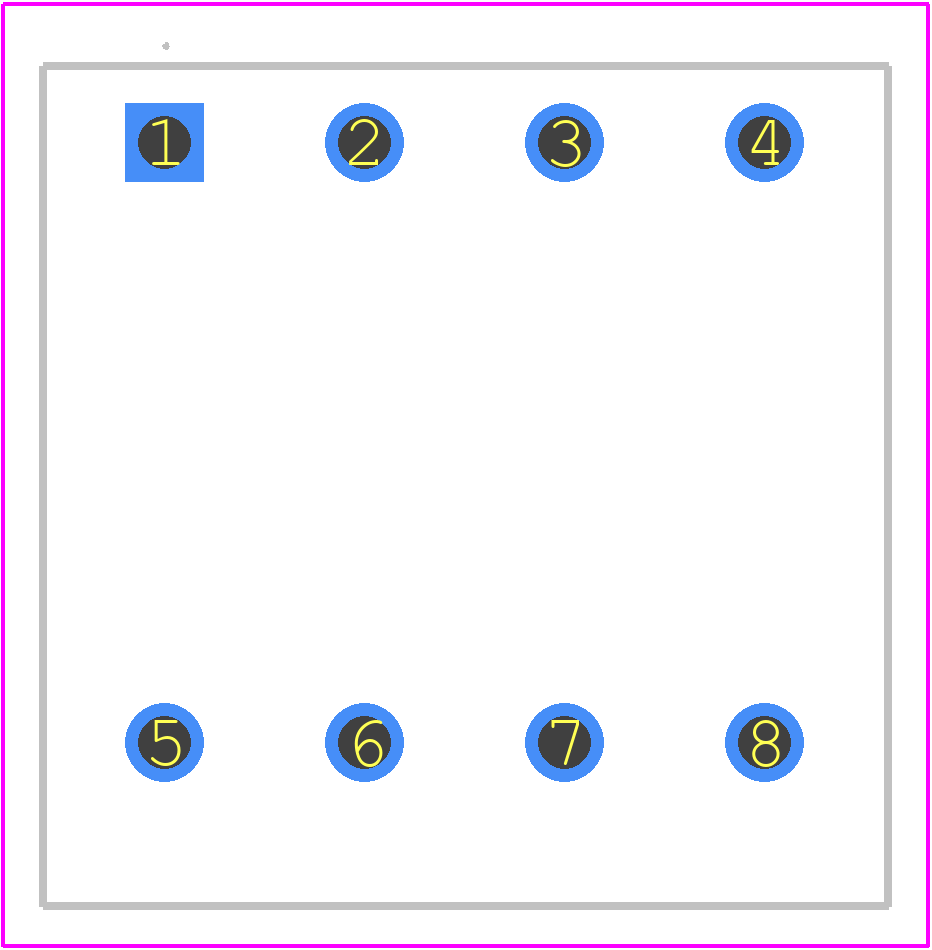

736-104 - Wago PCB footprint - Other - Other - 736-104-1
click to zoom
3D Models
736-104 - Wago - 3D model - Other - 736-104-1
click to zoom

736-104 Details

  • Manufacturer Part Number:

    736-104

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6

  • Additional Feature:

    FRONT ENTRY, CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    8

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

736-104 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) for the M3 screws.
  • Yes, the 736-104 connector is designed to withstand high vibrations and is suitable for use in applications with vibrations up to 10 g (according to IEC 60068-2-6).
  • Yes, the 736-104 connector is designed for outdoor use and can withstand environmental conditions according to IP67 (dust-tight and protected against immersion in water up to 1 meter for 30 minutes).
  • Yes, the 736-104 connector is suitable for use with stranded wires with a wire size range of 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).
  • The operating temperature range for the 736-104 connector is -40°C to +125°C (-40°F to +257°F).

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

736-104 Overview

Use the download button to access the 736-104 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 736-1, or try a keyword search, such as Terminals and Terminal Blocks
