737-504 - Wago

Description: Triple-deck PCB terminal block; 2.5 mm²; Pin spacing 7.5 mm; 12-pole; CAGE CLAMP®

Download 737-504 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
737-504 - Wago - PCB symbol
click to zoom
PCB Footprints

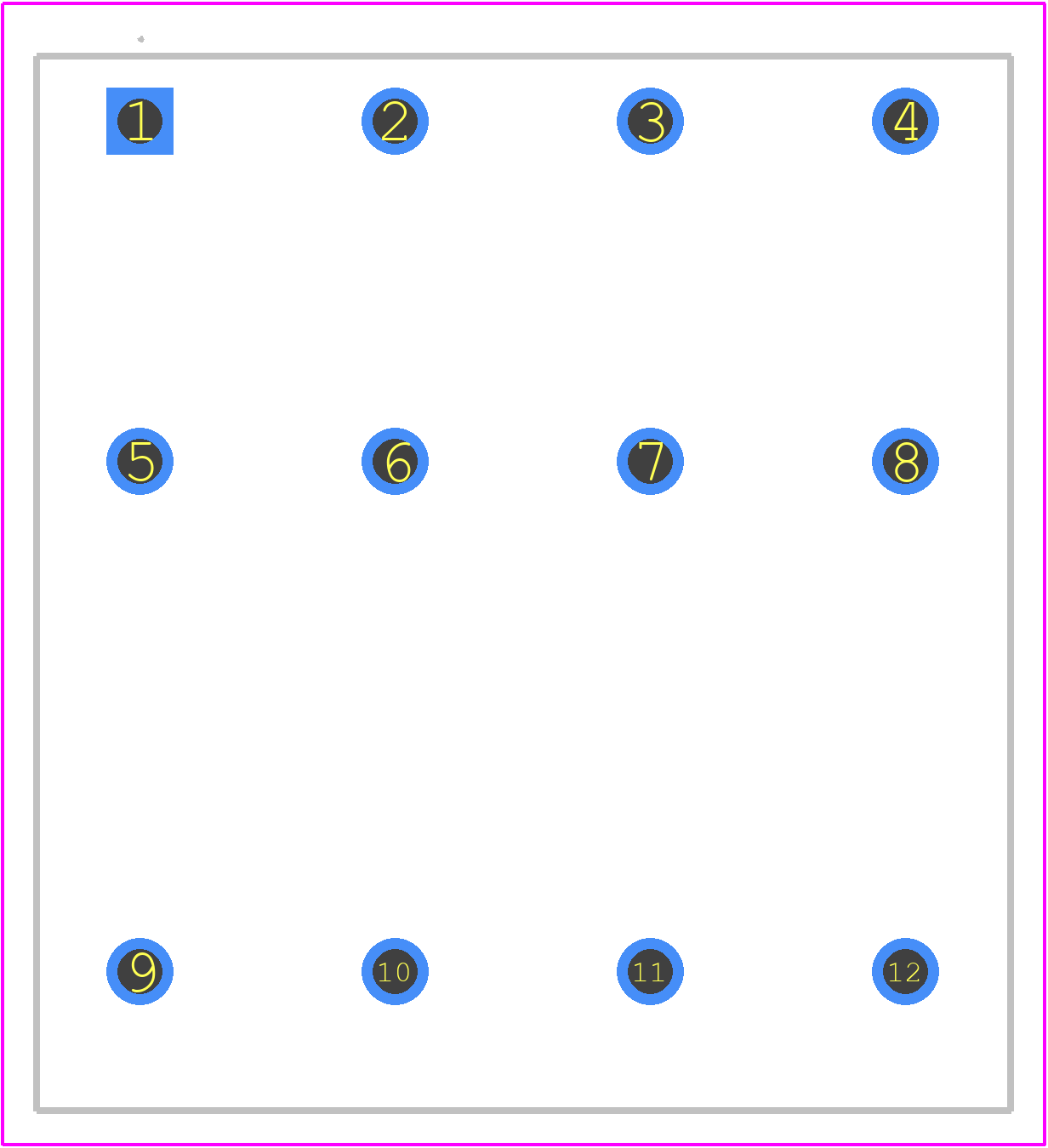

737-504 - Wago PCB footprint - Other - Other - 737-504-1
click to zoom
3D Models
737-504 - Wago - 3D model - Other - 737-504-1
click to zoom

737-504 Details

  • Manufacturer Part Number:

    737-504

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.75

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    3

  • Number of Rows:

    3

  • Number of Ways:

    12

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

737-504 Frequently Asked Questions (FAQs)

  • The 737-504 can operate in temperatures ranging from -40°C to 85°C (-40°F to 185°F), making it suitable for use in a wide range of industrial and commercial applications.
  • Yes, the 737-504 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The 737-504 has a maximum current rating of 32 A per pole, making it suitable for use in high-power applications.
  • Yes, the 737-504 is UL certified, ensuring that it meets the safety standards for use in North American markets.
  • Yes, the 737-504 is designed for use in hazardous locations, including Class I, Division 2 and Zone 2 environments, making it suitable for use in industries such as oil and gas, chemical processing, and pharmaceuticals.
