738-308 - Wago

Description: Quadruple-deck PCB terminal block; 2.5 mm²; Pin spacing 5.08 mm; 32-pole; CAGE CLAMP®

Download 738-308 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

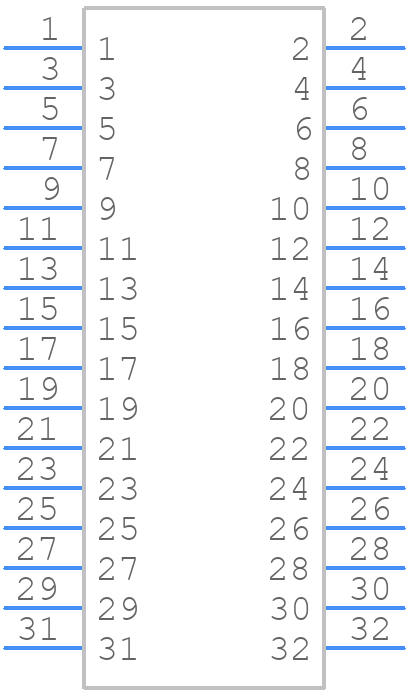

Symbol
738-308 - Wago - PCB symbol
click to zoom

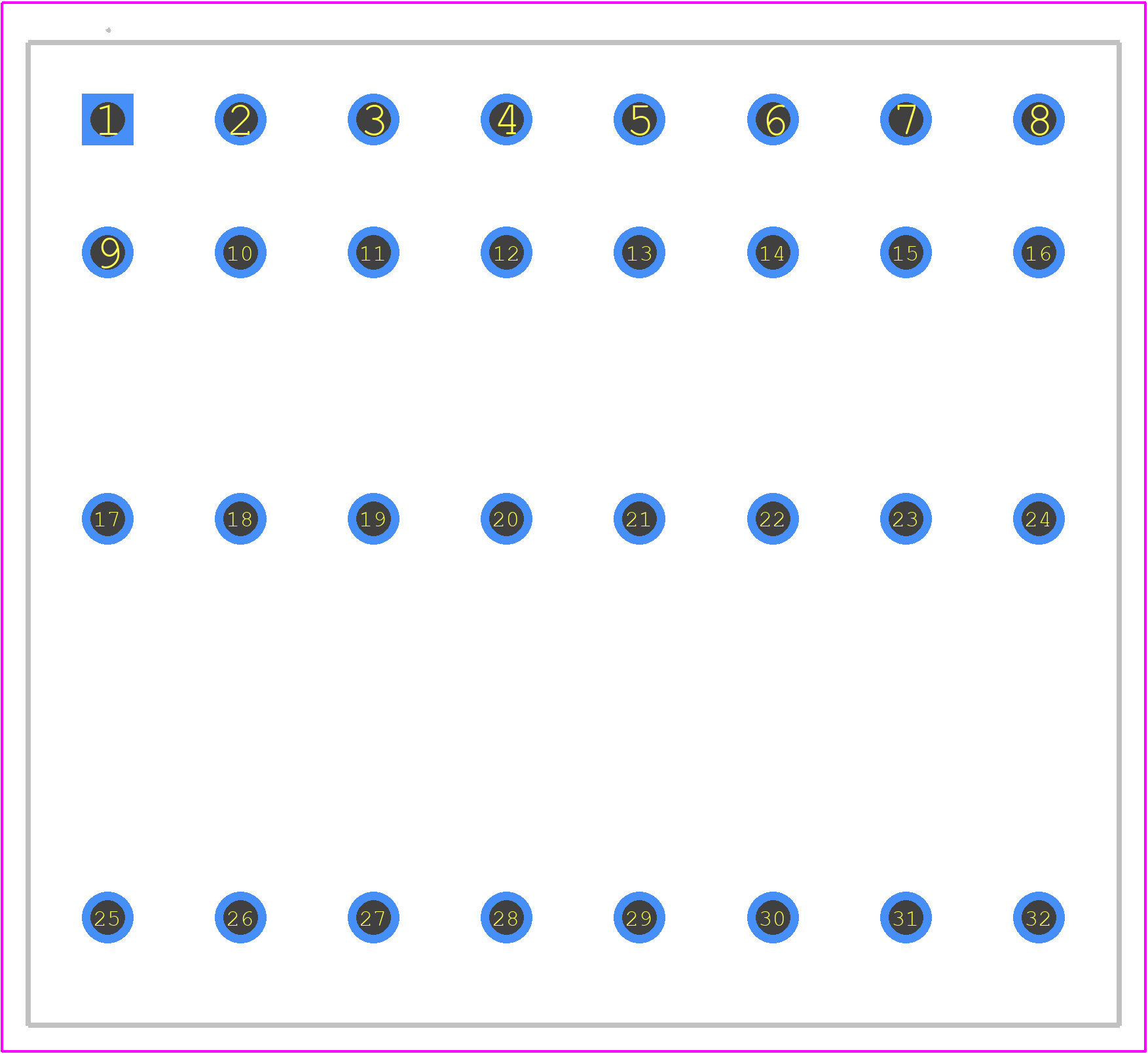

PCB Footprints
738-308 - Wago PCB footprint - Other - Other - 738-308-1
click to zoom
3D Models
738-308 - Wago - 3D model - Other - 738-308-1
click to zoom

738-308 Details

  • Manufacturer Part Number:

    738-308

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.75

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    4

  • Number of Rows:

    4

  • Number of Ways:

    32

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

738-308 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm. It's essential to follow the specified torque to ensure reliable connections and prevent damage to the terminals.
  • Yes, the 738-308 connector is designed to withstand high-vibration environments. The connector's rugged design and secure screw terminals ensure reliable connections even in demanding applications.
  • The 738-308 connector has a rating of IP67, which means it is protected against dust and temporary immersion in water. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating in outdoor applications.
  • The 738-308 connector is designed to accommodate wire sizes from 0.5 mm² to 2.5 mm². Using wire sizes outside this range may compromise the connection reliability and safety.
  • The 738-308 connector has a operating temperature range of -40°C to +125°C. However, it's essential to consider the temperature rating of the specific application and ensure the connector is used within its specified temperature range.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

738-308 Overview

Use the download button to access the 738-308 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 738-3, or try a keyword search, such as Terminals and Terminal Blocks
