739-112 - Wago

Description: PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 12-pole; CAGE CLAMP®

Download 739-112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
739-112 - Wago - PCB symbol
click to zoom
PCB Footprints

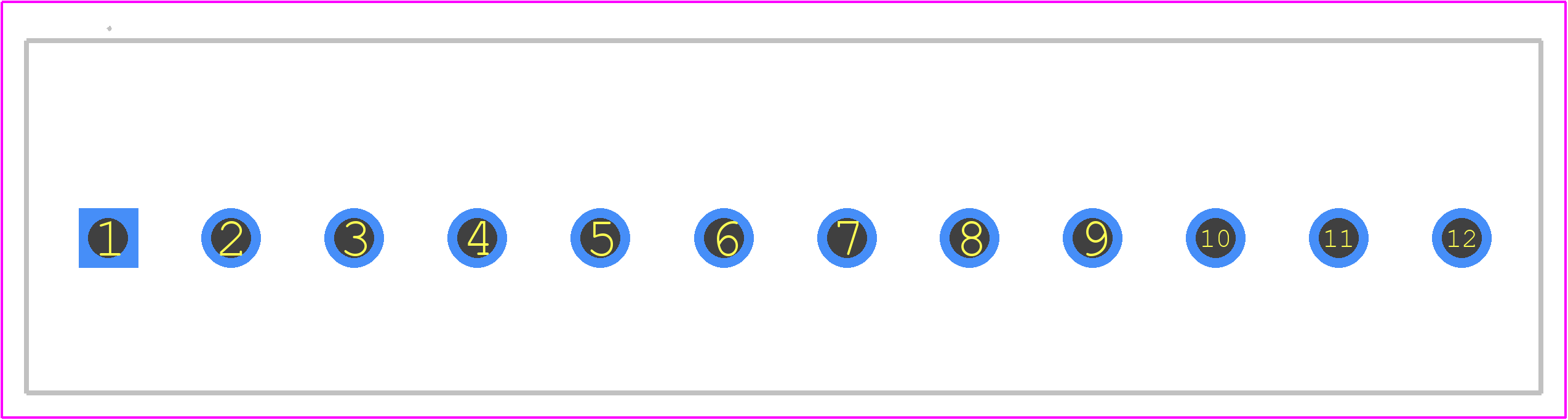

739-112 - Wago PCB footprint - Other - Other - 739-112-1
click to zoom
3D Models
739-112 - Wago - 3D model - Other - 739-112-1
click to zoom

739-112 Details

  • Manufacturer Part Number:

    739-112

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.75

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    12 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

739-112 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 739-112 connector is designed to withstand high-vibration environments. WAGO's connectors are tested to meet the requirements of IEC 61373, which includes vibration testing. However, it's essential to follow proper installation and mounting procedures to ensure the connector's performance in such applications.
  • The 739-112 connector has a rating of IP20, which means it's protected against solid objects larger than 12 mm, but it's not suitable for outdoor use or exposure to water. If you need a connector for outdoor use, consider WAGO's connectors with higher IP ratings, such as IP67 or IP69K.
  • Yes, the 739-112 connector is suitable for use with stranded wire. However, it's essential to follow WAGO's guidelines for preparing and inserting the stranded wire into the connector to ensure reliable connections.
  • The 739-112 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This range makes it suitable for use in a wide range of industrial and commercial applications.
