73M2901CE-IGV/F - Analog Devices

Description: V.22bis Single Chip Modem

Download 73M2901CE-IGV/F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

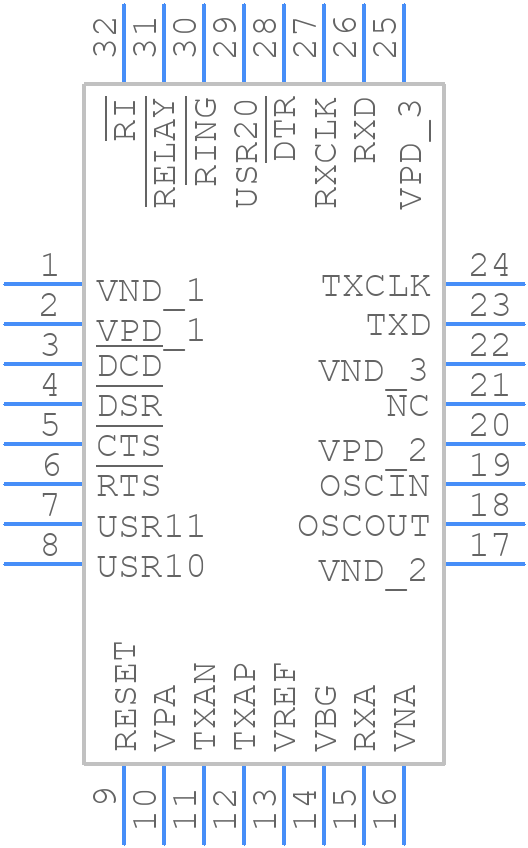

73M2901CE-IGV/F - Analog Devices - PCB symbol
click to zoom
PCB Footprints
73M2901CE-IGV/F - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 32-Pin TQFP-+-+
click to zoom
3D Models
73M2901CE-IGV/F - Analog Devices - 3D model - Quad Flat Packages - 32-Pin TQFP-+-+
click to zoom

73M2901CE-IGV/F Details

  • Manufacturer Part Number:

    73M2901CE-IGV/F

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    32-TQFP-7X7X1.0

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-TQFP-7X7X1.0

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2010-07-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-PQFP-G32

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    TQFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    15.5 mA

  • Surface Mount:

    YES

  • Telecom IC Type:

    MODEM

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD
