73M2901CE-IGVR/F footprint, schematic symbol and 3D model by Analog Devices

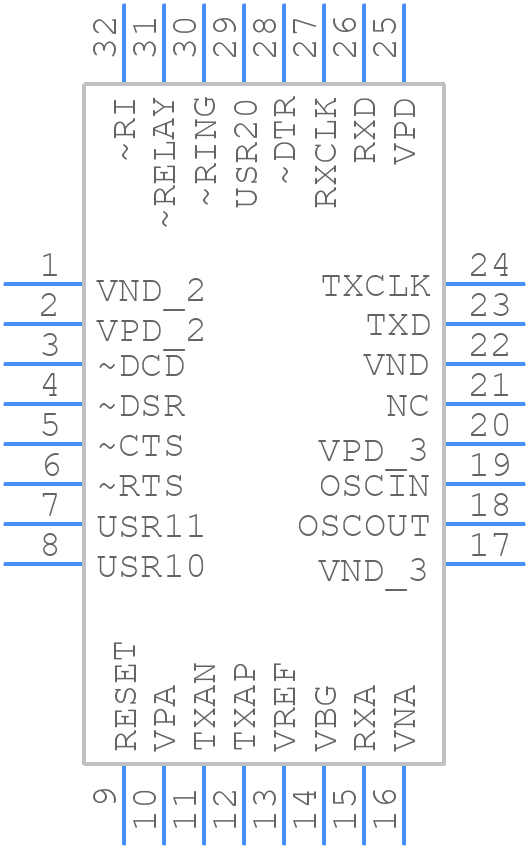

Symbol

click to zoom

PCB Footprints

73M2901CE-IGVR/F - Analog Devices PCB footprint - Other - Other - QFP80P900X900X120-32N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 73M2901CE-IGVR/F
Part Number 73M2901CE-IGVR/F
Manufacturer Analog Devices
Pin Count 32
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFP80P900X900X120-32N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

73M2901CE-IGVR/F Details

Manufacturer Part Number:
73M2901CE-IGVR/F
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Part Package Code:
32-TQFP-7X7X1.0
Pin Count:
32
Manufacturer Package Code:
32-TQFP-7X7X1.0
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.39.00.01
Date Of Intro:
2010-07-28
Manufacturer:
Analog Devices Inc
YTEOL:
3
JESD-30 Code:
S-PQFP-G32
Moisture Sensitivity Level:
3
Number of Terminals:
32
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
QFP
Package Equivalence Code:
TQFP32,.35SQ,32
Package Shape:
SQUARE
Package Style:
FLATPACK
Qualification Status:
Not Qualified
Supply Current-Max:
15.5 mA
Surface Mount:
YES
Telecom IC Type:
MODEM
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
QUAD

73M2901CE-IGVR/F Frequently Asked Questions (FAQs)

A good PCB layout for the 73M2901CE-IGVR/F involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the sensitive analog pins. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the 73M2901CE-IGVR/F, use a high-quality power supply with low noise and ripple, and decouple the power pins with 0.1uF and 10uF capacitors. Additionally, use a 1uF capacitor to decouple the analog power pin from the digital power pin.
The 73M2901CE-IGVR/F has an operating temperature range of -40°C to +85°C, but it's recommended to operate it within a temperature range of 0°C to 70°C for optimal performance and reliability.
To troubleshoot common issues with the 73M2901CE-IGVR/F, start by checking the power supply and decoupling, then verify the clock frequency and signal integrity. Next, check the communication protocol and ensure that the device is properly configured. If the issue persists, consult the datasheet and application notes for further guidance.
The 73M2901CE-IGVR/F is a surface-mount device and can be sensitive to high-vibration or high-shock environments. To ensure reliability, it's recommended to use a robust PCB design and mounting scheme, and to follow the manufacturer's guidelines for vibration and shock testing.
