73S8009R-IL/F footprint, schematic symbol and 3D model by Analog Devices

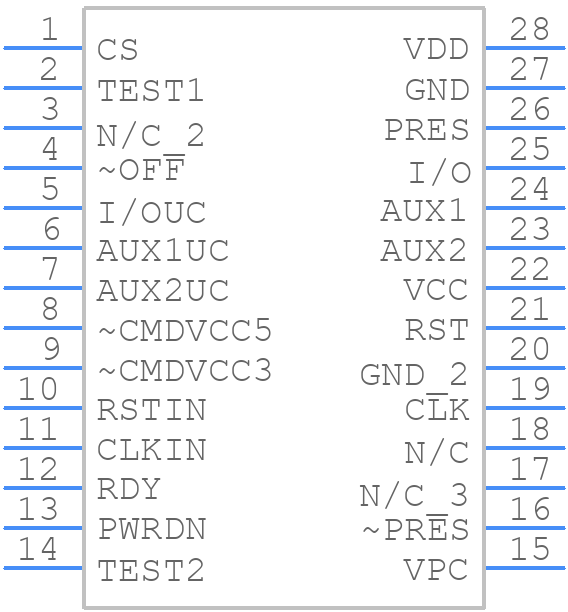

Symbol

click to zoom

PCB Footprints

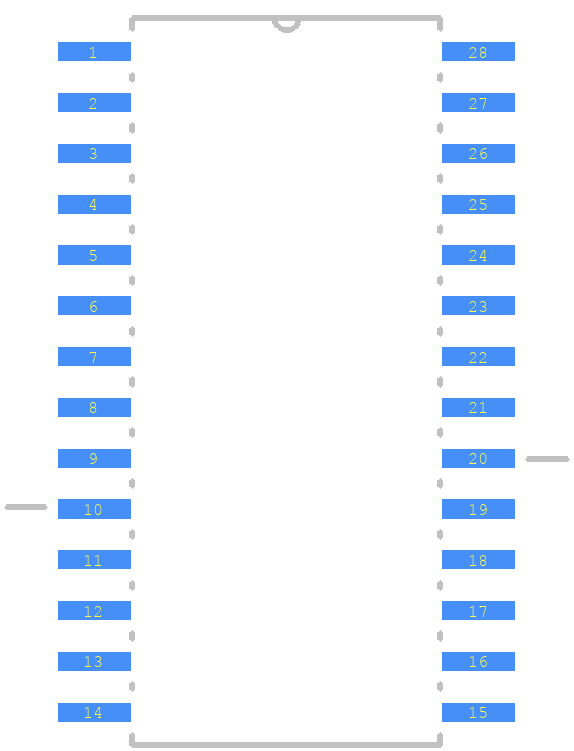

73S8009R-IL/F - Analog Devices PCB footprint - Other - Other - SOIC127P1028X279-28N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 73S8009R-IL/F
Part Number 73S8009R-IL/F
Manufacturer Analog Devices
Pin Count 28
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOIC127P1028X279-28N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

73S8009R-IL/F Details

Manufacturer Part Number:
73S8009R-IL/F
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
28-SOIC_W-300_MIL
Pin Count:
28
Manufacturer Package Code:
28-SOIC_W-300_MIL
HTS Code:
8542.39.00.01
Date Of Intro:
2010-07-27
Manufacturer:
Analog Devices Inc
YTEOL:
0
Analog IC - Other Type:
ANALOG CIRCUIT
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED

Trust Checks

System Verified

73S8009R-IL/F Overview

Use the download button to access the 73S8009R-IL/F schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 73S80, or try a keyword search, such as Other Interface ICs
