Part Image

744201 - Würth Elektronik

Description: WE-SL SMT Common Mode Line Filter L = 4700 µH; Z = 14000 Ω; IR = 200 mA; RDC = 0.85 Ω

Download 744201 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

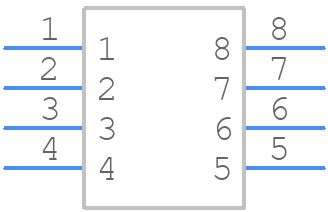

Symbol
744201 - Würth Elektronik - PCB symbol
click to zoom

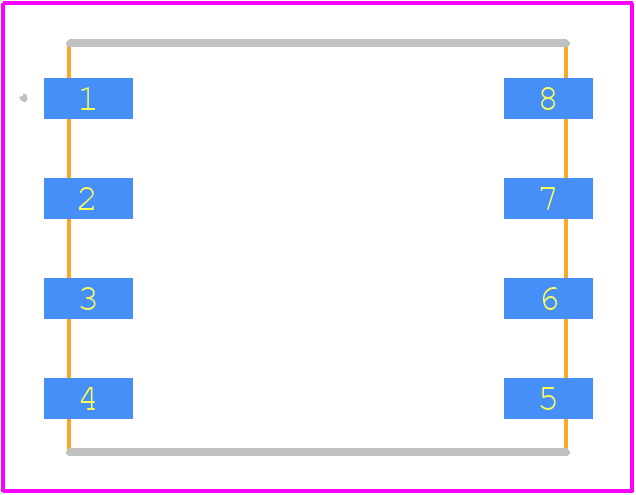

PCB Footprints
744201 - Würth Elektronik PCB footprint - Other - Other - 744201-1
click to zoom
3D Models
744201 - Würth Elektronik - 3D model - Other - 744201-1
click to zoom

744201 Details

  • Manufacturer Part Number:

    744201

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS AND REACH COMPLIANT, SMD, 8 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Wurth Elektronik

  • YTEOL:

    15

  • Approvals:

    UL

  • DC Resistance-Max:

    0.85 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    5.75 mm

  • Inductance:

    4700 µH

  • JESD-609 Code:

    e3

  • Length:

    10.5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    14000 OHM Ω

  • Rated Current:

    0.2 A

  • Rated Voltage:

    80 V

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Width:

    9.5 mm

744201 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the 744201 is a rectangular pad with a size of 3.2 mm x 1.6 mm, with a 0.5 mm spacing between the pads.
  • To ensure reliable soldering of the 744201, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the component.
  • The maximum operating temperature range for the 744201 is -40°C to +125°C, with a storage temperature range of -40°C to +150°C.
  • Handle the 744201 component by the body, avoiding touching the pins or leads to prevent damage from electrostatic discharge (ESD). Use an ESD wrist strap or mat to discharge static electricity from your body.
  • The recommended reflow soldering profile for the 744201 is a peak temperature of 240°C to 250°C, with a dwell time of 30 seconds to 60 seconds above 217°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

744201 Overview

Use the download button to access the 744201 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74420, or try a keyword search, such as Data Line Filters
