7443640680 footprint, schematic symbol and 3D model by Würth Elektronik

Symbol

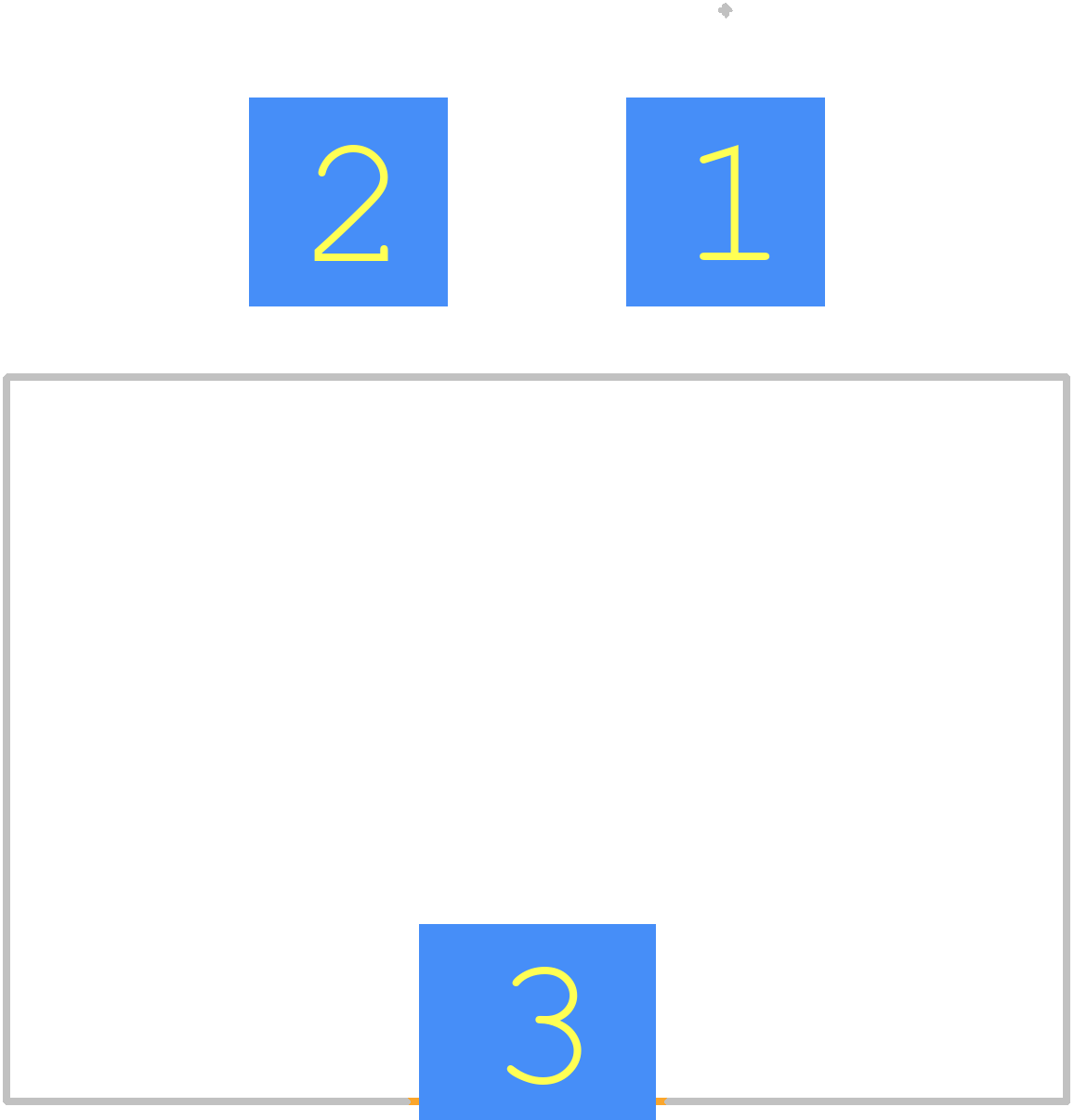

PCB Footprints

3D Models

7443640680 Details

The recommended PCB footprint for the 7443640680 can be found in the Wurth Elektronik's PCB Library or in the component's 3D model. It's essential to follow the recommended footprint to ensure proper assembly and to prevent thermal and electrical issues.
The 7443640680 has a thermal pad on the bottom side, which should be connected to a thermal via or a copper plane on the PCB to dissipate heat efficiently. Additionally, ensure good airflow around the component and consider using a heat sink if necessary.
The 7443640680 has an operating temperature range of -40°C to +125°C. However, it's essential to note that the component's performance and reliability may degrade if operated at the extreme ends of this range.
The 7443640680 is designed to withstand moderate vibrations, but it's essential to ensure that the PCB is properly secured and that the component is properly soldered to prevent mechanical stress. Consult Wurth Elektronik's application notes for more information.
Follow the recommended soldering profile and temperature range specified in the datasheet. Ensure the PCB is clean and free of oxidation, and use a solder with a melting point compatible with the component's lead-free finish.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 7443640680 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 74436, or try a keyword search, such as Fixed Inductors
