745-108 - Wago

Description: PCB terminal block; 4 mm²; Pin spacing 5 mm; 8-pole; CAGE CLAMP®; commoning option

Download 745-108 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

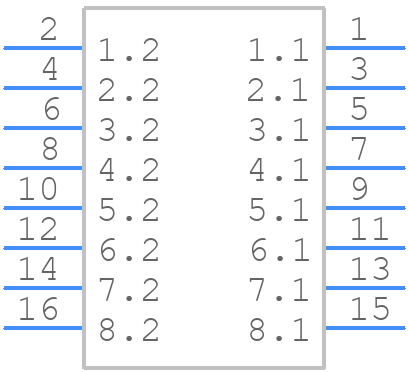

745-108 - Wago - PCB symbol
click to zoom
PCB Footprints

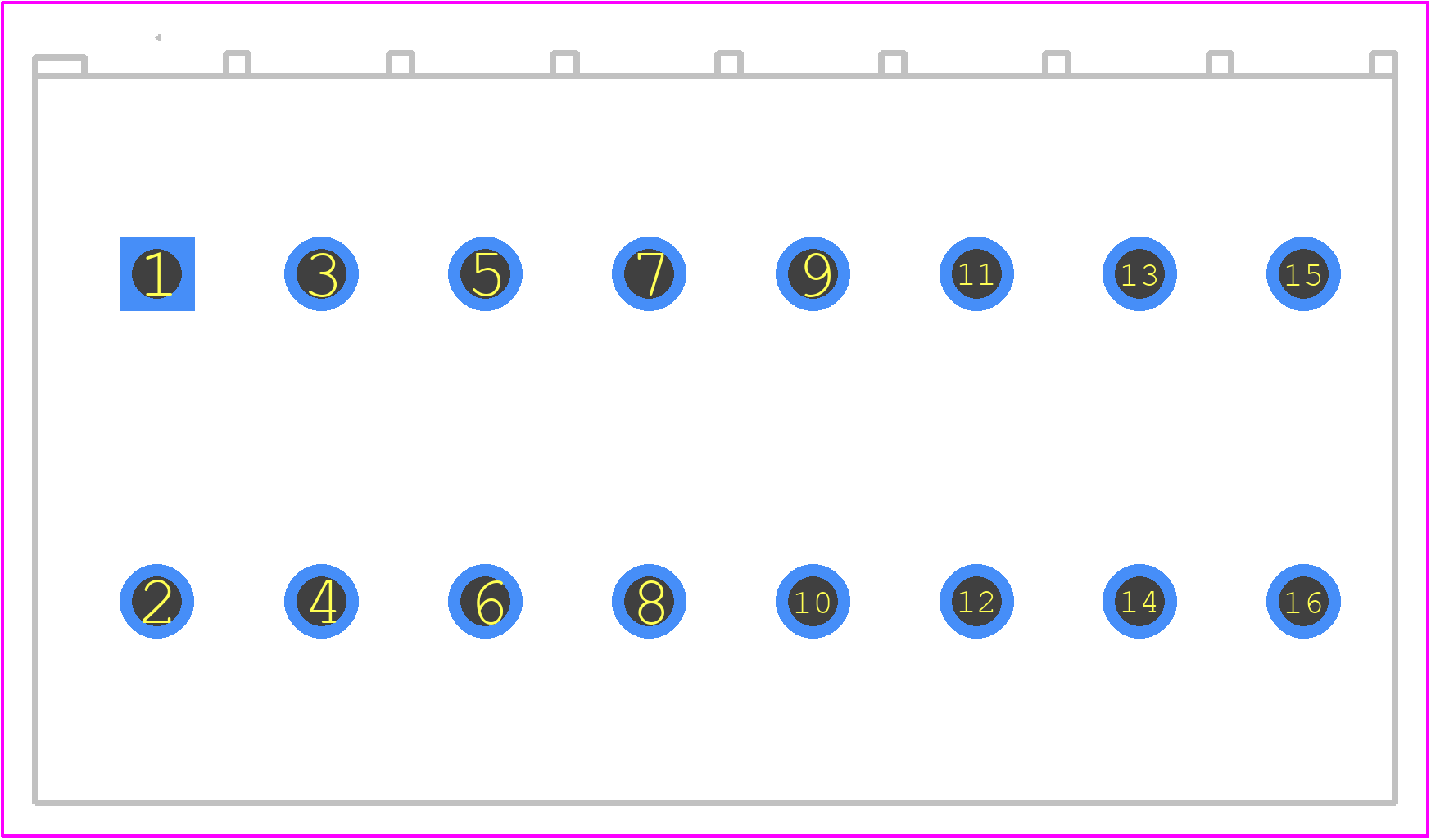

745-108 - Wago PCB footprint - Other - Other - 745-108-1
click to zoom

745-108 Details

  • Manufacturer Part Number:

    745-108

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CCA;CSA;EN;IEC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    4 mm2

  • Wire Gauge:

    12 AWG

745-108 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 745-108 is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 745-108 is designed to withstand high-vibration applications. It meets the vibration test requirements of IEC 60068-2-6 and DIN EN 61373.
  • Yes, the 745-108 is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and water ingress, and can operate in temperatures ranging from -40°C to 100°C (-40°F to 212°F).
  • Yes, the 745-108 can be used with stranded wire. However, it's recommended to use a ferrule or wire end sleeve to ensure a secure connection.
  • The maximum operating current for the 745-108 is 41 A per pole, depending on the wire size and application.
