745-302 - Wago

Description: PCB terminal block; 6 mm²; Pin spacing 7.5 mm; 2-pole; CAGE CLAMP®; commoning option

Download 745-302 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
745-302 - Wago - PCB symbol
click to zoom

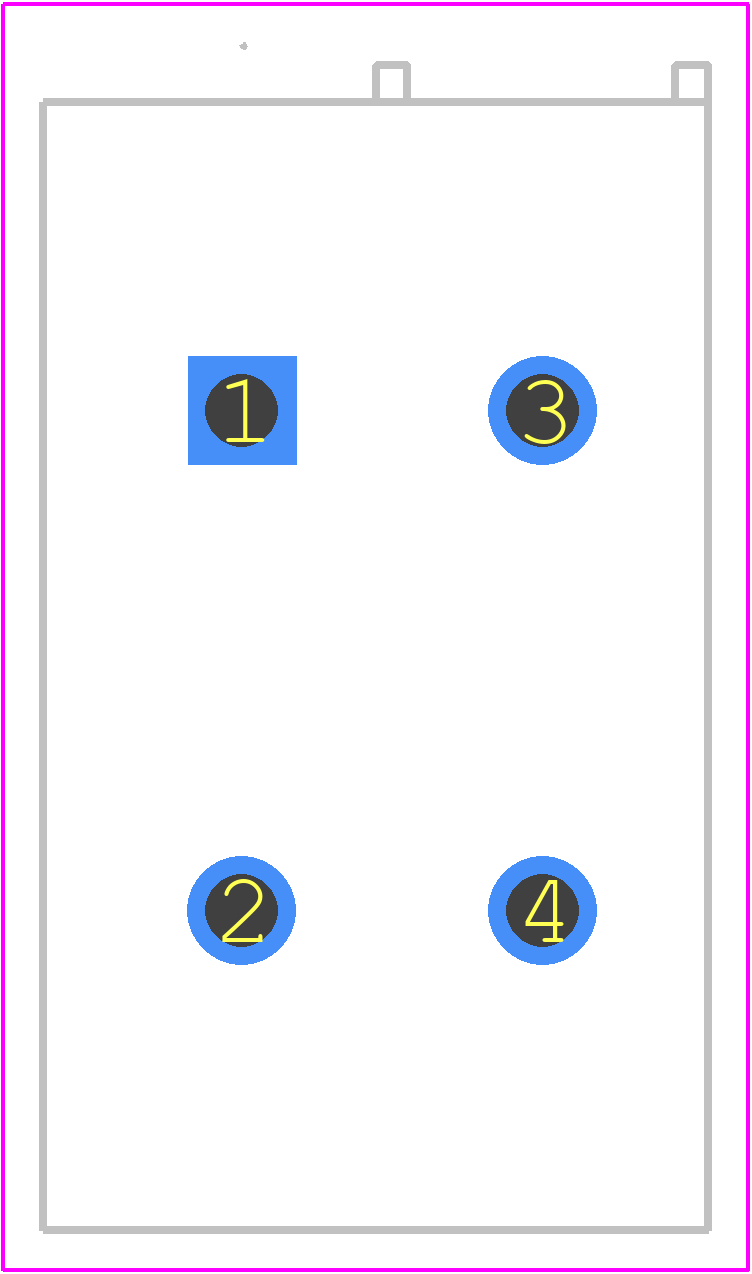

PCB Footprints
745-302 - Wago PCB footprint - Other - Other - 745-302-1
click to zoom
3D Models
745-302 - Wago - 3D model - Other - 745-302-1
click to zoom

745-302 Details

  • Manufacturer Part Number:

    745-302

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    30 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CCA;CSA;EN;IEC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    6 mm2

  • Wire Gauge:

    10 AWG

745-302 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 745-302 connector is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 745-302 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 60068-2-6.
  • Yes, the 745-302 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • No, the 745-302 connector is not designed for use in explosive atmospheres. It does not meet the requirements of ATEX or IECEx.
  • The maximum operating temperature for the 745-302 connector is 85°C (185°F).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

745-302 Overview

Use the download button to access the 745-302 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 745-3, or try a keyword search, such as Terminals and Terminal Blocks
