The recommended torque for screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
Yes, the 745-312 connector is designed to withstand high-vibration environments. WAGO's connectors are tested to meet the requirements of IEC 61373, which includes vibration testing. However, it's essential to follow proper installation and mounting guidelines to ensure the connector's performance in such applications.
The 745-312 connector has a rating of IP20, which means it's protected against solid objects larger than 12.5 mm, but it's not suitable for outdoor use or exposure to water. If you need a connector for outdoor use, consider WAGO's connectors with higher IP ratings, such as IP67 or IP69K.
Yes, the 745-312 connector is suitable for use with stranded wire. However, it's essential to follow WAGO's guidelines for preparing stranded wire, including using the correct wire ferrules and ensuring the wire is properly seated in the connector.
The operating temperature range of the 745-312 connector is -40°C to 125°C (-40°F to 257°F). This range is suitable for most industrial applications, but it's essential to consider the temperature range of the entire system and ensure the connector is used within its specified operating range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
745-312 Overview

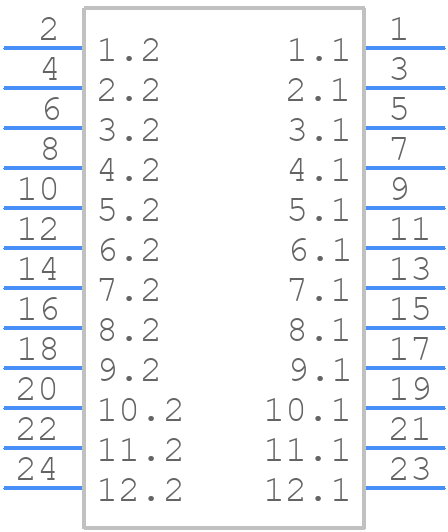

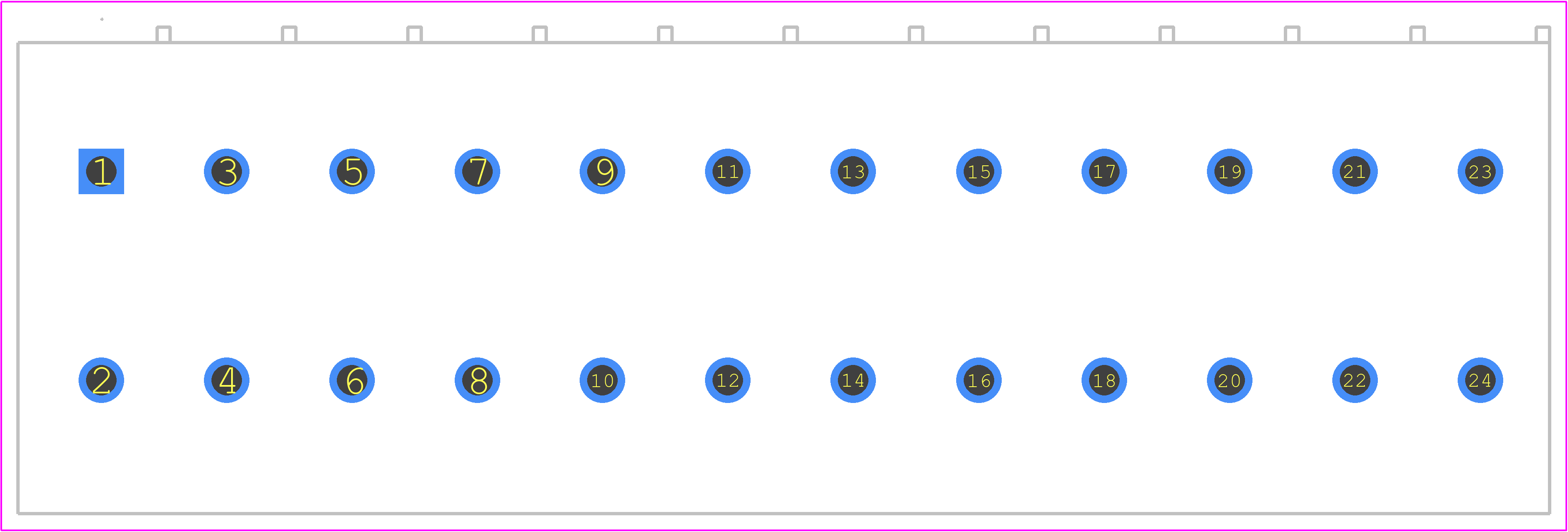

Use the download button to access the 745-312 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 745-3,
or try a keyword search, such as Terminals and Terminal Blocks
