Part Image

745071-4 - TE Connectivity

Description: TE Connectivity AMPLIMITE HD-20 Series 2.74mm Pitch 9 Way Straight Through Hole Mount PCB D-sub Connector, Plug

Download 745071-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

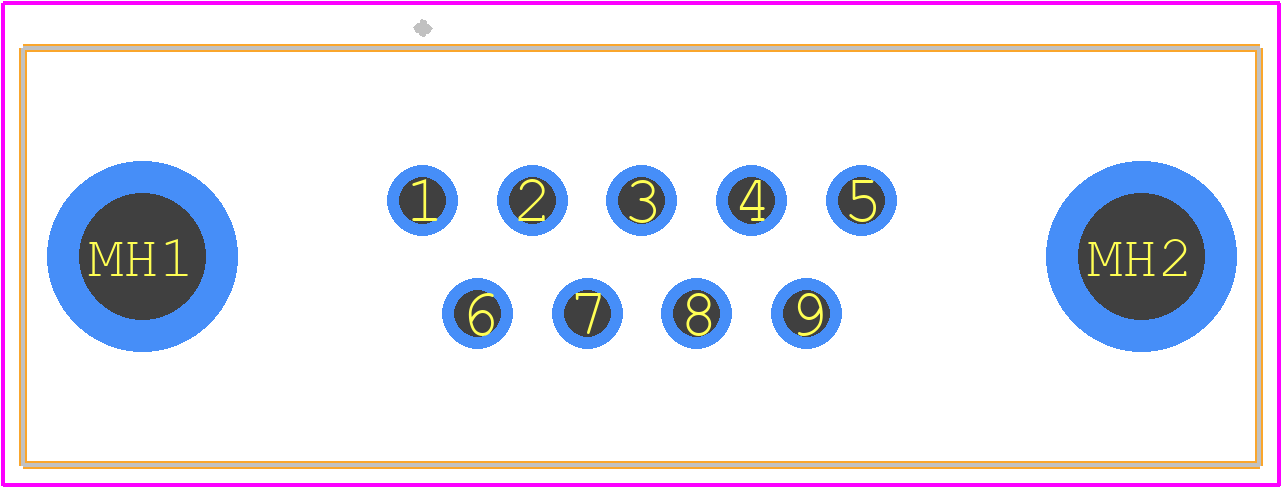

745071-4 - TE Connectivity PCB footprint - Other - Other - 745071-4-1
click to zoom
3D Models
745071-4 - TE Connectivity  - 3D model - Other - 745071-4-1
click to zoom

745071-4 Details

  • Manufacturer Part Number:

    745071-4

  • Brand Name:

    AMP

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not_compliant

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.38

  • Additional Feature:

    AMPLIMITE

  • Body Breadth:

    0.42 inch

  • Body Length:

    1.228 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYESTER

  • JESD-609 Code:

    e0

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6A

  • Mating Contact Pitch:

    0.109 inch

  • Mating Contact Row Spacing:

    0.112 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    SCREWLOCKS

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.8448 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    6 A

  • Reference Standard:

    UL

  • Shell Size:

    1/E

  • Terminal Length:

    0.17 inch

  • Terminal Pitch:

    2.74 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

745071-4 Overview

Use the download button to access the 745071-4 schematic symbol, PCB footprint, and 3D model.
