749022016 Frequently Asked Questions (FAQs)

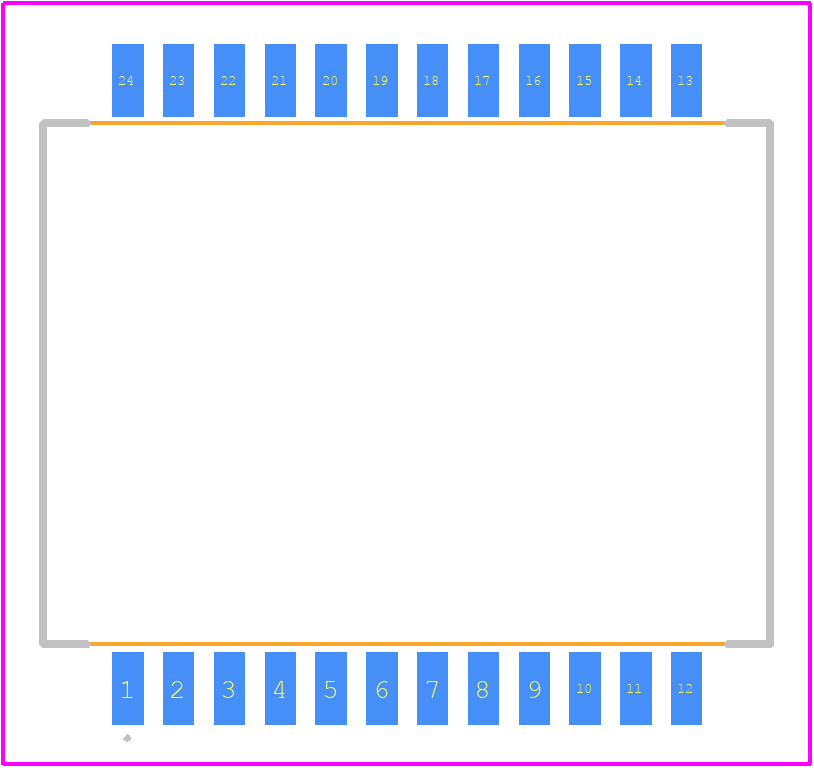

• What is the recommended PCB footprint for the 749022016?
  The recommended PCB footprint for the 749022016 can be found in the Wurth Elektronik's PCB Library or by contacting their technical support. It's essential to ensure the correct footprint to prevent assembly issues and ensure reliable operation.
• How do I handle the component's thermal management?
  The 749022016 has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate heat dissipation, using thermal vias, and keeping the component away from heat sources. Consult the datasheet for thermal resistance and junction-to-ambient thermal resistance values.
• What are the recommended storage and handling procedures for the 749022016?
  Store the 749022016 in a dry, cool place, away from direct sunlight and moisture. Handle the component by the body, avoiding touching the pins or electrical contacts. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge damage.
• Can I use the 749022016 in a high-vibration environment?
  The 749022016 is designed to withstand moderate vibrations. However, for high-vibration environments, consider using additional mechanical support or potting the component to ensure reliable operation. Consult Wurth Elektronik's technical support for specific guidance.
• How do I troubleshoot issues with the 749022016?
  To troubleshoot issues, start by verifying the component's pinout, voltage, and current ratings. Check for proper PCB assembly, soldering, and thermal management. Use oscilloscopes or logic analyzers to diagnose signal integrity issues. Consult Wurth Elektronik's application notes and technical support for guidance.
