Description:WE-RJ45LAN Integrated Transformer 10GBASE-T, THT, 1x1, Tab-up, with shield tabs, LED L: green/yellow, LED R: green, -40+85°C, PoE with 350mA per center tab
Wurth Elektronik provides a recommended PCB layout in their application notes and design guides, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications.
The 7499711421 component has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to implement proper thermal management, such as using thermal vias, heat sinks, or thermal pads, depending on the specific application and environmental conditions.
Wurth Elektronik recommends following the JEDEC J-STD-020 standard for soldering, which specifies the temperature profile, soldering time, and other parameters. It's essential to follow these guidelines to ensure reliable solder joints and prevent damage to the component.
The 7499711421 component is designed to meet the requirements of various industries, including automotive and industrial applications. However, it's essential to evaluate the component's performance in the specific vibration environment and consider additional mechanical fixation or potting if necessary.
Wurth Elektronik provides troubleshooting guides and application notes on their website. Additionally, engineers can use standard debugging techniques, such as signal analysis, voltage measurements, and visual inspection, to identify and resolve issues related to the component.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7499711421 Overview

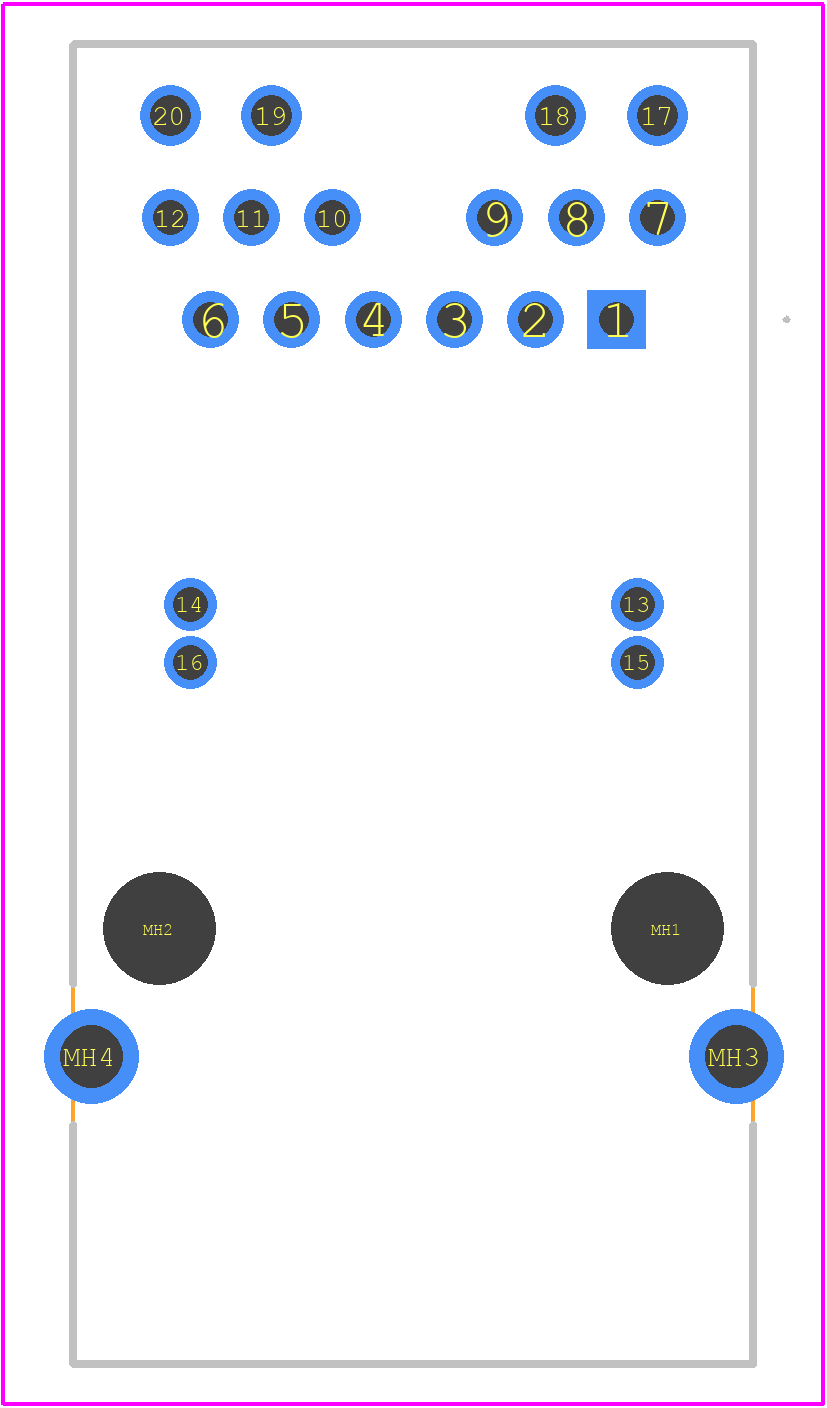

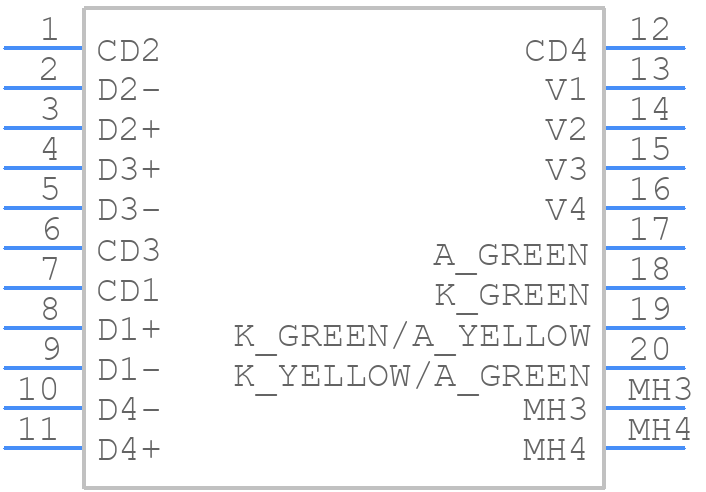

Use the download button to access the 7499711421 schematic symbol, PCB footprint, and 3D model.
