74AC139SCX - onsemi

Description: Two completely independent 1-of-4 decoders; Outputs source/sink 24 mA; Multifunction capability; Active LOW mutually exclusive outputs; ACT139 has TTL-compatible inputs; ICC reduced by 50%

Download 74AC139SCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

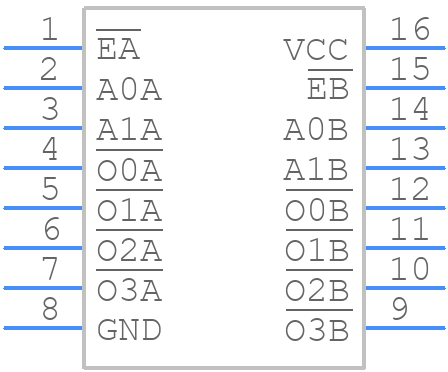

Symbol
74AC139SCX - onsemi - PCB symbol
click to zoom
PCB Footprints
74AC139SCX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - M16A (SOIC)
click to zoom
3D Models
74AC139SCX - onsemi - 3D model - Small Outline Packages - M16A (SOIC)
click to zoom

74AC139SCX Details

  • Manufacturer Part Number:

    74AC139SCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16

  • Manufacturer Package Code:

    751BG

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • JESD-609 Code:

    e3

  • Logic IC Type:

    2-LINE TO 4-LINE DECODER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

74AC139SCX Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74AC139SCX is 2.0V to 3.6V.
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within the recommended temperature range (-40°C to 85°C) and that the junction temperature (TJ) does not exceed 150°C.
  • The maximum clock frequency supported by the 74AC139SCX is 100 MHz.
  • To ensure proper operation, power up the VCC pin before applying any input signals, and power down the VCC pin after removing all input signals.
  • The recommended termination scheme for the 74AC139SCX is to use a 50-ohm termination resistor in series with a 50-pF capacitor to ground on each output.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74AC139SCX Overview

Use the download button to access the 74AC139SCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74AC1, or try a keyword search, such as Decoder/Drivers
