The recommended operating voltage range for the 74ACT11000DR is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a fixed voltage of 5V for optimal performance.
It's recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
The maximum frequency of operation for the 74ACT11000DR is typically around 100 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulations to determine the maximum frequency for a specific design.
To ensure signal integrity and minimize noise, it's recommended to use proper PCB design techniques, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors. Additionally, it's recommended to use a low-impedance output driver and a high-impedance input receiver to minimize signal reflections and noise.
While the 74ACT11000DR is specified for 5V operation, it can be used in a 3.3V system with some limitations. The device will still function, but the output voltage levels may not be as high, and the noise margin may be reduced. It's recommended to consult the datasheet and perform simulations to determine the feasibility of using the device in a 3.3V system.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
74ACT11000DR Overview

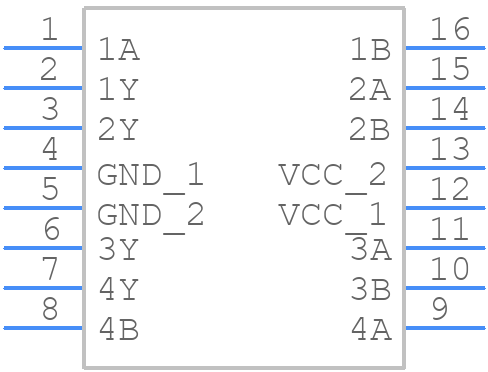

Use the download button to access the 74ACT11000DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74ACT,
or try a keyword search, such as Gates
