74ACT11030N - Texas Instruments

Description: 8-INPUT POSITIVE-NAND GATES

Download 74ACT11030N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

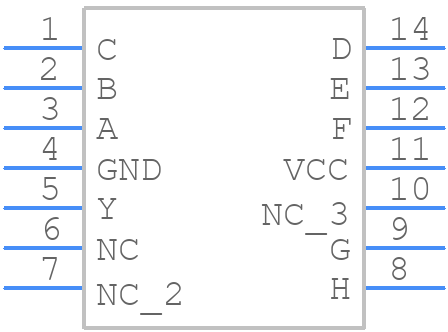

Symbol
74ACT11030N - Texas Instruments - PCB symbol
click to zoom

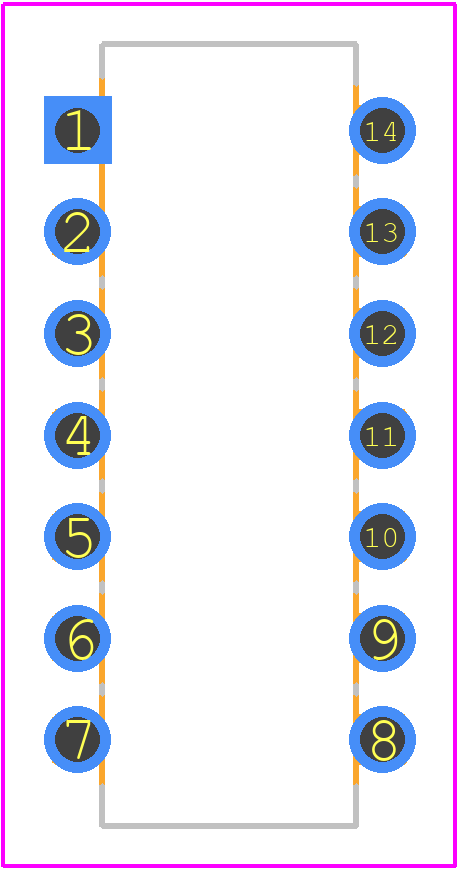

PCB Footprints
74ACT11030N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom
3D Models
74ACT11030N - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom

74ACT11030N Details

  • Manufacturer Part Number:

    74ACT11030N

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PDIP-14

  • Country Of Origin:

    Malaysia, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    CENTER PIN VCC AND GND

  • Family:

    ACT

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NAND GATE

  • Max I(ol):

    0.024 A

  • Number of Functions:

    1

  • Number of Inputs:

    8

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    8.7 ns

  • Propagation Delay (tpd):

    8.7 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

74ACT11030N Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74ACT11030N is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a fixed voltage of 5V for optimal performance.
  • The output enable (OE) pin is active-low, meaning that the outputs are enabled when OE is low (connected to GND) and disabled when OE is high (connected to VCC). Make sure to connect OE to a valid logic level to avoid output contention.
  • The maximum frequency of operation for the 74ACT11030N is typically around 100 MHz, but this can vary depending on the specific application, load capacitance, and operating conditions. Consult the datasheet and application notes for more information.
  • To ensure signal integrity and minimize noise, use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and adding decoupling capacitors. Additionally, consider using series termination resistors and/or parallel termination capacitors to reduce signal reflections and ringing.
  • While the 74ACT11030N is specified for 5V operation, it can be used in a 3.3V system with some limitations. However, the output voltage levels may not be fully compatible with 3.3V logic, and the device's performance may be degraded. Consult the datasheet and application notes for more information on using the device in a 3.3V system.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

74ACT11030N Overview

Use the download button to access the 74ACT11030N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74ACT, or try a keyword search, such as Gates

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
