The recommended operating voltage range for the 74ACT11139PWR is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a fixed voltage of 5V for optimal performance.
It's recommended to power up the VCC pin first, followed by the input signals, and then the output enable (OE) pin. During power-down, the OE pin should be disabled before the input signals, and finally, the VCC pin should be powered down last.
The maximum frequency of operation for the 74ACT11139PWR is 100 MHz, as specified in the datasheet. However, the actual frequency of operation may be limited by the system design, layout, and loading conditions.
To ensure signal integrity and minimize noise, it's recommended to use proper PCB design techniques, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors. Additionally, the use of series termination resistors and/or parallel termination resistors may be necessary to minimize reflections and ringing.
The maximum output current that the 74ACT11139PWR can sink or source is 24 mA, as specified in the datasheet. However, it's recommended to limit the output current to 12 mA or less to ensure reliable operation and minimize power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74ACT11139PWR Overview

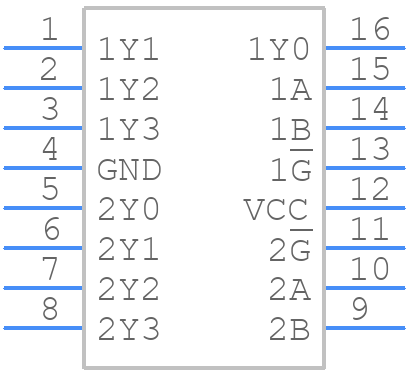

Use the download button to access the 74ACT11139PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74ACT,
or try a keyword search, such as Decoder/Drivers
