The recommended operating voltage range for the 74ACT11244PW is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a fixed voltage of 5V for optimal performance.
The 74ACT11244PW has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
The 74ACT11244PW can sink or source up to 24mA of current per output, as specified in the datasheet. However, it's recommended to limit the current to 12mA per output to ensure reliable operation and prevent overheating.
To ensure signal integrity, it's essential to follow proper PCB design practices, such as using controlled impedance traces, minimizing signal routing, and using termination resistors as needed. Additionally, ensure that the power supply is clean and well-regulated to prevent noise and jitter.
The 74ACT11244PW is a 5V CMOS device, and it's compatible with other 5V CMOS logic families. However, when interfacing with other logic families, such as TTL or ECL, ensure that the voltage levels and current requirements are compatible to prevent damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74ACT11244PW Overview

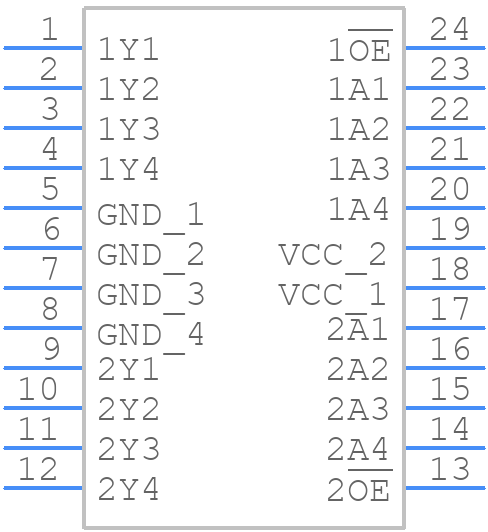

Use the download button to access the 74ACT11244PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74ACT,
or try a keyword search, such as Bus Driver/Transceivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
