74ACT11374DW - Texas Instruments

Description: Octal Edge-Triggered D-Type Flip-Flops with 3-State Outputs

Download 74ACT11374DW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

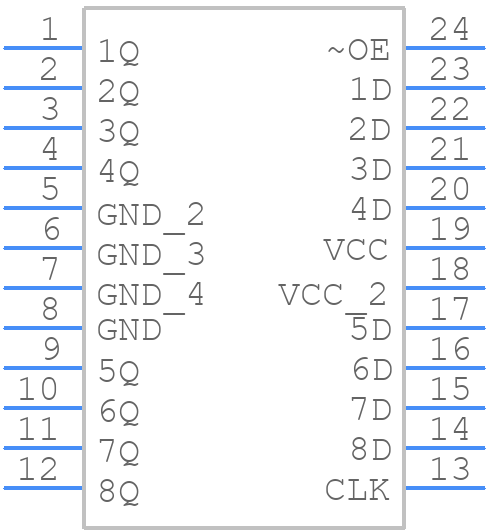

74ACT11374DW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
74ACT11374DW - Texas Instruments PCB footprint - Other - Other - SOIC127P1030X265-24N
click to zoom
3D Models
74ACT11374DW - Texas Instruments - 3D model - Other - SOIC127P1030X265-24N
click to zoom

74ACT11374DW Details

  • Manufacturer Part Number:

    74ACT11374DW

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    ACT

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    15.4 mm

  • Logic IC Type:

    BUS DRIVER

  • Max Frequency@Nom-Sup:

    55000000 Hz

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    8

  • Number of Ports:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.08 mA

  • Propagation Delay (tpd):

    13 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.5 mm

74ACT11374DW Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74ACT11374DW is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a fixed voltage of 5V for optimal performance.
  • It's recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
  • The maximum frequency of operation for the 74ACT11374DW is typically around 100 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulations to determine the maximum frequency for a specific design.
  • It's recommended to use a termination resistor (e.g. 50 ohms) at the output of the device to prevent signal reflections and ensure signal integrity. The termination resistor should be placed as close to the output pin as possible.
  • While the 74ACT11374DW is specified for 5V operation, it can be used in a 3.3V system with some limitations. The device will still function, but the output voltage levels may not be as high, and the noise margin may be reduced. It's recommended to consult the datasheet and perform simulations to determine the feasibility of using the device in a 3.3V system.
