74ACT11374NT - Texas Instruments

74ACT11374NT Details

• Manufacturer Part Number:

  74ACT11374NT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

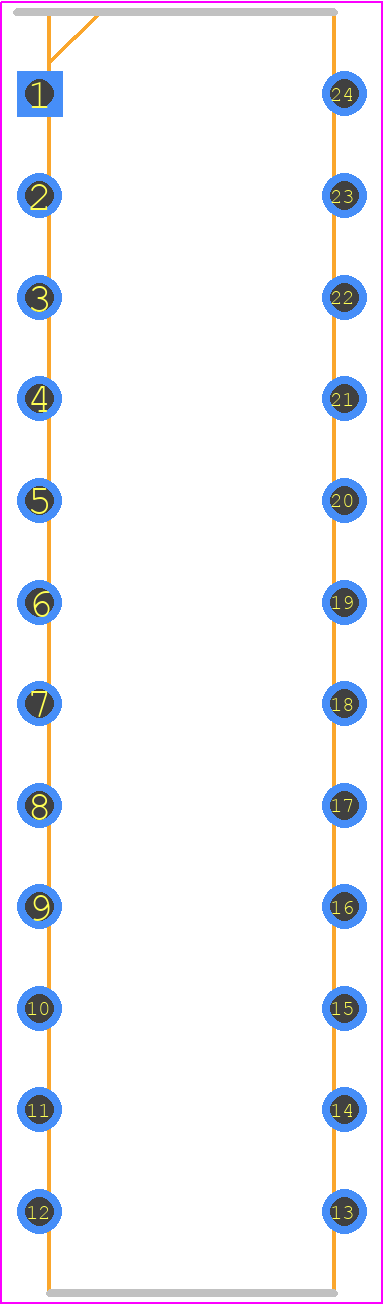

• Part Package Code:

  DIP

• Package Description:

  DIP-24

• Pin Count:

  24

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Family:

  ACT

• JESD-30 Code:

  R-PDIP-T24

• JESD-609 Code:

  e4

• Length:

  31.64 mm

• Logic IC Type:

  BUS DRIVER

• Max Frequency@Nom-Sup:

  55000000 Hz

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  TUBE

• Propagation Delay (tpd):

  13 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Trigger Type:

  POSITIVE EDGE

• Width:

  7.62 mm
