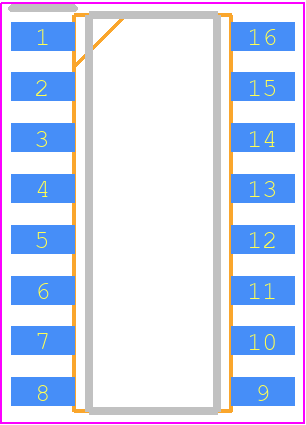

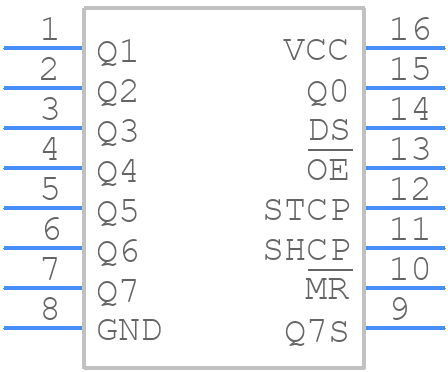

74AHC595S16-13 - Diodes Incorporated

74AHC595S16-13 Frequently Asked Questions (FAQs)

• What is the maximum clock frequency that can be used with this shift register?
  The maximum clock frequency for the 74AHC595S16-13 is typically around 100 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the datasheet and perform testing to determine the maximum clock frequency for your specific use case.
• How do I ensure that the output signals are properly synchronized with the clock signal?
  To ensure proper synchronization, make sure to use a clock signal with a rise time of less than 10 ns and a fall time of less than 10 ns. Additionally, use a clock signal with a duty cycle of 40% to 60% to ensure that the output signals are properly synchronized.
• What is the recommended operating voltage range for this device?
  The recommended operating voltage range for the 74AHC595S16-13 is 2.0 V to 5.5 V. Operating the device outside of this range may affect its performance and reliability.
• How do I handle power-up and power-down sequencing for this device?
  To ensure proper operation, it's recommended to power up the device in the following sequence: VCC, then clock signal, then data input. When powering down, reverse the sequence: data input, then clock signal, then VCC.
• What is the maximum current that can be sourced or sunk by each output pin?
  The maximum current that can be sourced or sunk by each output pin of the 74AHC595S16-13 is typically around 25 mA. However, it's recommended to check the datasheet and perform testing to determine the maximum current handling capability for your specific application.
