74AHCT123AD,118 - Nexperia

Description: 74AHC(T)123A - Dual retriggerable monostable multivibrator with reset@en-us

Download 74AHCT123AD,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

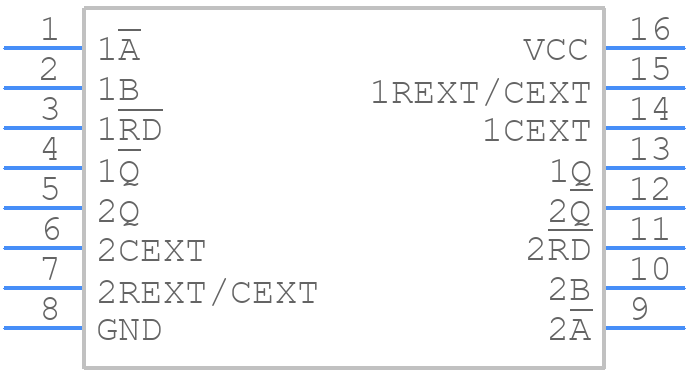

Symbol
74AHCT123AD,118 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74AHCT123AD,118 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT109-1 (SO16)
click to zoom
3D Models
74AHCT123AD,118 - Nexperia - 3D model - Small Outline Packages - SOT109-1 (SO16)
click to zoom

74AHCT123AD,118 Details

  • Manufacturer Part Number:

    74AHCT123AD,118

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP

  • Package Description:

    3.90 MM, PLASTIC, MS-012, SOT109-1, SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT109-1

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    6.45

  • Family:

    AHCT/VHCT/VT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Moisture Sensitivity Level:

    1

  • Number of Data/Clock Inputs:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    17.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

74AHCT123AD,118 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74AHCT123AD,118 is 4.5V to 5.5V, as specified in the datasheet. However, it's generally recommended to operate the device at a stable 5V supply voltage for optimal performance.
  • It's recommended to power up the VCC pin before applying any input signals, and to power down the VCC pin after removing all input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
  • The maximum frequency of operation for the 74AHCT123AD,118 is typically limited by the propagation delay and clock-to-output delay specifications. In general, the device can operate at frequencies up to 100 MHz or more, depending on the specific application and system requirements.
  • To ensure signal integrity and minimize noise, it's recommended to use proper PCB design techniques, such as using short signal traces, adding decoupling capacitors, and using a solid ground plane. Additionally, consider using series termination resistors and/or parallel termination capacitors to reduce signal reflections and ringing.
  • While the 74AHCT123AD,118 is specified for 5V operation, it can be used in a 3.3V system with some limitations. The device will still function, but the output voltage levels may not be as high, and the noise margins may be reduced. It's recommended to consult the datasheet and perform thorough testing to ensure compatibility and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74AHCT123AD,118 Overview

Use the download button to access the 74AHCT123AD,118 schematic symbol, PCB footprint, and 3D model.
