74AHCT1G79GV,125 - Nexperia

Description: 74AHC(T)1G79 - Single D-type flip-flop; positive-edge trigger@en-us

Download 74AHCT1G79GV,125 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

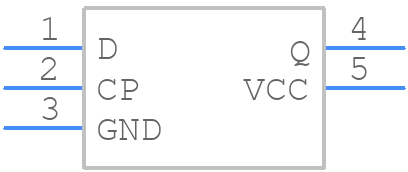

Symbol
74AHCT1G79GV,125 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74AHCT1G79GV,125 - Nexperia PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SOT753
click to zoom
3D Models
74AHCT1G79GV,125 - Nexperia - 3D model - SOT23 (5-Pin) - SOT753
click to zoom

74AHCT1G79GV,125 Details

  • Manufacturer Part Number:

    74AHCT1G79GV,125

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Package Description:

    PLASTIC, SOT-753, SC-74A, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    SOT753

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    6.45

  • Family:

    AHCT/VHCT

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    70000000 Hz

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    50 mA

  • Prop. Delay@Nom-Sup:

    11 ns

  • Propagation Delay (tpd):

    11 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    1.5 mm

  • fmax-Min:

    70 MHz

74AHCT1G79GV,125 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74AHCT1G79GV,125 is 4.5V to 5.5V, as specified in the datasheet. However, it's generally recommended to operate the device at a fixed voltage of 5V for optimal performance and to ensure compatibility with other 5V logic devices.
  • It's recommended to power up the 74AHCT1G79GV,125 in a controlled manner to prevent unwanted output transitions. A simple power-up sequence is to apply the power supply voltage (VCC) before applying any input signals. During power-down, it's recommended to remove the input signals before removing the power supply voltage.
  • The maximum frequency of operation for the 74AHCT1G79GV,125 is not explicitly stated in the datasheet. However, based on the propagation delay and transition time specifications, it's generally recommended to operate the device at frequencies up to 100 MHz for optimal performance.
  • To ensure EMC with the 74AHCT1G79GV,125, it's recommended to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to reduce noise and electromagnetic radiation. Additionally, consider using shielding or filtering components to reduce electromagnetic interference (EMI).
  • The thermal derating for the 74AHCT1G79GV,125 is not explicitly stated in the datasheet. However, as a general rule, it's recommended to derate the device's power dissipation by 1-2% per degree Celsius above the maximum operating temperature (typically 70°C) to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74AHCT1G79GV,125 Overview

Use the download button to access the 74AHCT1G79GV,125 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74AHC, or try a keyword search, such as FF/Latches

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
