The recommended operating voltage range for the 74AHCT30PW,118 is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a fixed voltage of 5V for optimal performance.
To ensure proper power and decoupling, connect a 0.1uF ceramic capacitor between VCC and GND as close to the device as possible. Additionally, use a 10uF electrolytic capacitor in parallel to filter out any noise or ripple on the power supply.
The maximum frequency of operation for the 74AHCT30PW,118 is 100MHz, as specified in the datasheet. However, the actual frequency of operation may be limited by the system's clock frequency, signal integrity, and other factors.
During power-up and power-down sequences, ensure that all input pins are tied to a valid logic level (either VCC or GND) to prevent unwanted switching. Also, avoid driving the output pins during power-up and power-down to prevent damage to the device or other components.
For optimal performance, follow good PCB design practices such as using a solid ground plane, minimizing signal trace lengths, and avoiding signal crosstalk. Also, ensure that the device is placed in a location that minimizes thermal resistance and allows for good heat dissipation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74AHCT30PW,118 Overview

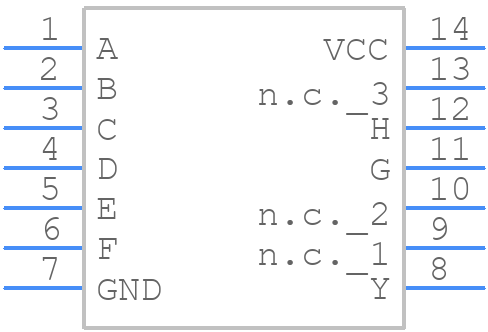

Use the download button to access the 74AHCT30PW,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74AHC,
or try a keyword search, such as Gates
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
