74AUP2G32GM,125 - Nexperia

Description: 74AUP2G32 - Low-power dual 2-input OR gate@en-us

Download 74AUP2G32GM,125 Model

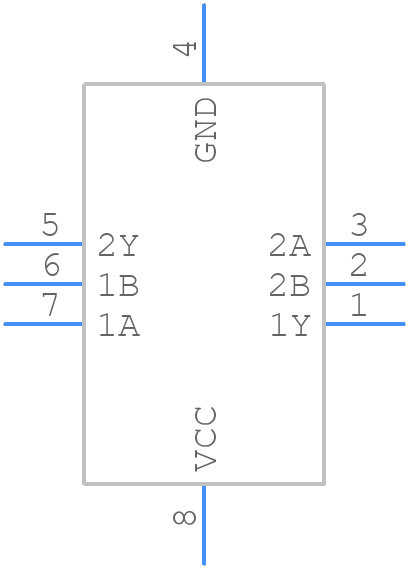

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74AUP2G32GM,125 - Nexperia PCB footprint - Other - Other - XQFN8(SOT902-2)_2022
click to zoom
3D Models
74AUP2G32GM,125 - Nexperia  - 3D model - Other - XQFN8(SOT902-2)_2022
click to zoom

74AUP2G32GM,125 Details

  • Manufacturer Part Number:

    74AUP2G32GM,125

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    1.60 X 1.60 MM, 0.50 MM HEIGHT, PLASTIC, MO-255, SOT902-1, QFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT902-2

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Family:

    AUP/ULP/V

  • JESD-30 Code:

    S-PQCC-N8

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Logic IC Type:

    OR GATE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

74AUP2G32GM,125 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74AUP2G32GM,125 is 0.8 V to 3.6 V.
  • Yes, the 74AUP2G32GM,125 is suitable for high-frequency applications up to 100 MHz due to its low propagation delay and high bandwidth.
  • To ensure the 74AUP2G32GM,125 is properly powered, connect the VCC pin to a stable power supply, and decouple the power supply with a 100 nF capacitor to reduce noise and voltage spikes.
  • No, the 74AUP2G32GM,125 is not recommended for use in a 5 V system as it is designed to operate at a maximum voltage of 3.6 V. Using it in a 5 V system may cause damage to the device.
  • The maximum current that the 74AUP2G32GM,125 can sink or source is 24 mA per output pin.
