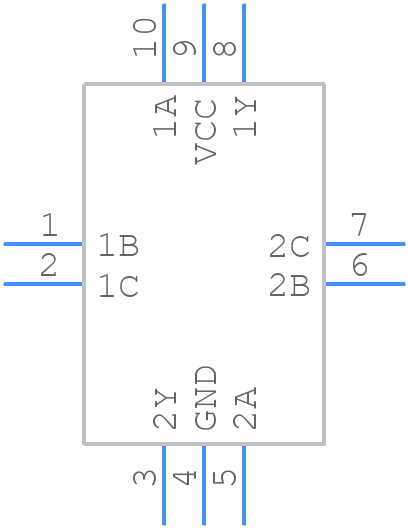

74AUP2G57GUX - Nexperia

74AUP2G57GUX Details

• Manufacturer Part Number:

  74AUP2G57GUX

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  1.40 X 1.80 MM, 0.50 MM HEIGHT, PLASTIC, SOT1160-1, XQFN-10

• Pin Count:

  10

• Manufacturer Package Code:

  SOT1160-1

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Nexperia

• YTEOL:

  5.25

• Family:

  AUP/ULP/V

• JESD-30 Code:

  R-PQCC-N10

• JESD-609 Code:

  e4

• Length:

  1.8 mm

• Logic IC Type:

  MAJORITY LOGIC GATE

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VQCCN

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.5 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  0.8 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.4 mm
