74AVC1T1022DPJ - Nexperia

Description: 74AVC1T1022 - 1-to-4 fan-out buffer@en-us

Download 74AVC1T1022DPJ Model

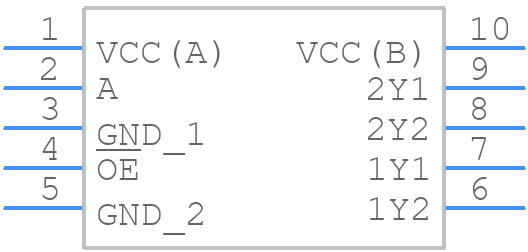

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74AVC1T1022DPJ - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP10: plastic thin shrink small outline package; 10 leads; body width 3 mm-
click to zoom
3D Models
74AVC1T1022DPJ - Nexperia  - 3D model - Small Outline Packages - TSSOP10: plastic thin shrink small outline package; 10 leads; body width 3 mm-
click to zoom

74AVC1T1022DPJ Details

  • Manufacturer Part Number:

    74AVC1T1022DPJ

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    SOT552-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    10

  • Family:

    AVC

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    15.7 ns

  • Same Edge Skew-Max (tskwd):

    0.9 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

74AVC1T1022DPJ Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74AVC1T1022DPJ is 1.2V to 3.6V.
  • To ensure signal integrity, use a low-ESR capacitor (e.g., 0.1uF) between VCC and GND, and keep the PCB traces as short as possible.
  • The maximum clock frequency supported by the 74AVC1T1022DPJ is 250 MHz.
  • Power sequencing is not critical for the 74AVC1T1022DPJ, but it's recommended to power up VCC before applying any input signals.
  • The maximum power dissipation for the 74AVC1T1022DPJ is 500 mW.
