74AVC4T245BQ-Q10AX footprint, schematic symbol and 3D model by Nexperia

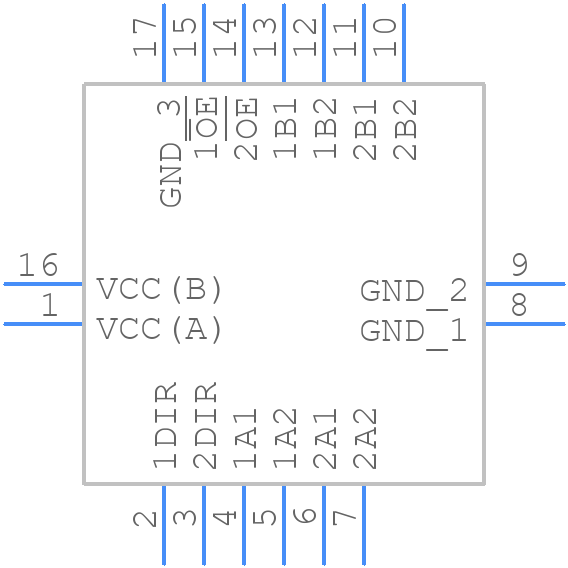

Symbol

click to zoom

PCB Footprints

74AVC4T245BQ-Q10AX - Nexperia PCB footprint - Other - Other - SOT763-1 (DHVQFN16)-2026-6.1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 74AVC4T245BQ-Q10AX
Part Number 74AVC4T245BQ-Q10AX
Manufacturer Nexperia
Pin Count 17
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOT763-1 (DHVQFN16)-2026-6.1
Released Date May 15, 2026
Last Modified Date May 15, 2026 4:56 AM UTC
Pinout / Pin List Click Here (Member Only)

74AVC4T245BQ-Q10AX Details

Manufacturer Part Number:
74AVC4T245BQ-Q10AX
Manufacturer:
Nexperia

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

74AVC4T245BQ-Q10AX Overview

Use the download button to access the 74AVC4T245BQ-Q10AX schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 74AVC, or try a keyword search, such as Bus Driver/Transceivers

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
