Part Image

74AVCH1T45GW-Q100H - Nexperia

Description: 74AVCH1T45-Q100 - Dual-supply voltage level translator/transceiver; 3-state@en-us

Download 74AVCH1T45GW-Q100H Model

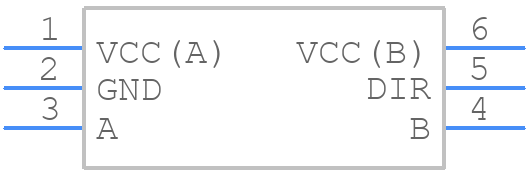

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74AVCH1T45GW-Q100H - Nexperia PCB footprint - Other - Other - 74AVCH1T45GW-Q100H-3
click to zoom
3D Models
74AVCH1T45GW-Q100H - Nexperia  - 3D model - Other - 74AVCH1T45GW-Q100H-3
click to zoom

74AVCH1T45GW-Q100H Details

  • Manufacturer Part Number:

    74AVCH1T45GW-Q100H

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    PLASTIC, SOT-363, SC-88, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT363-2

  • Reach Compliance Code:

    Compliant

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Family:

    AVC

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Logic IC Type:

    BUS TRANSCEIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    9.9 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74AVCH1T45GW-Q100H Overview

Use the download button to access the 74AVCH1T45GW-Q100H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74AVC, or try a keyword search, such as Bus Driver/Transceivers
