The recommended operating voltage range for the 74AXP1T34GSH is 0.9V to 3.6V, although it can operate down to 0.7V with reduced performance.
To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors if necessary. Also, consider using a signal integrity analysis tool to simulate and optimize your design.
While the 74AXP1T34GSH can tolerate 5V on its inputs, it is not recommended to use it in a 5V system as it is designed for low-voltage applications. Using it in a 5V system may reduce its lifespan and affect its performance.
To handle power sequencing, ensure that the power supply to the 74AXP1T34GSH is stable and within the recommended operating range before applying input signals. You can also use power sequencing controllers or voltage supervisors to ensure proper power-up and power-down sequences.
The 74AXP1T34GSH can sink or source up to 24mA of current per output, although this may vary depending on the operating voltage and temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74AXP1T34GSH Overview

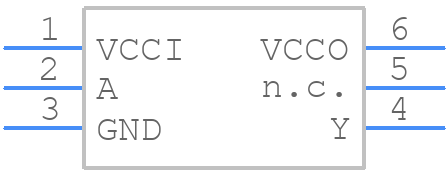

Use the download button to access the 74AXP1T34GSH schematic symbol, PCB footprint, and 3D model.
