74CBTLV1G125GS,132 - Nexperia

Description: 74CBTLV1G125 - Single bus switch@en-us

Download 74CBTLV1G125GS,132 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

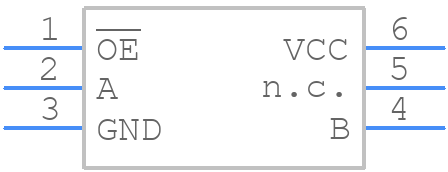

Symbol
74CBTLV1G125GS,132 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74CBTLV1G125GS,132 - Nexperia PCB footprint - Other - Other - SOT1202
click to zoom
3D Models
74CBTLV1G125GS,132 - Nexperia - 3D model - Other - SOT1202
click to zoom

74CBTLV1G125GS,132 Details

  • Manufacturer Part Number:

    74CBTLV1G125GS,132

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    1 X 1 MM, 0.35 MM HEIGHT, SOT-1202, SON-6

  • Manufacturer Package Code:

    SOT1202

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    6.25

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    CBTLV/3B

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    1 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    50 mA

  • Prop. Delay@Nom-Sup:

    0.39 ns

  • Propagation Delay (tpd):

    0.39 ns

  • Seated Height-Max:

    0.35 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1 mm

74CBTLV1G125GS,132 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74CBTLV1G125GS,132 is 2.3 V to 3.6 V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 1.8 V to 4.3 V, but with reduced performance and reliability.
  • To ensure signal integrity, it's crucial to follow proper PCB design guidelines, such as using controlled impedance traces, minimizing trace lengths, and adding termination resistors as needed. Additionally, ensure that the input signals are properly terminated and that the output capacitance is within the recommended range.
  • The maximum current rating for the 74CBTLV1G125GS,132 is 64 mA per channel, as specified in the datasheet. However, it's essential to consider the total current consumption and ensure that it does not exceed the maximum rating to prevent overheating and reliability issues.
  • Yes, the 74CBTLV1G125GS,132 can be used as a level shifter, but it's essential to ensure that the input signal is properly conditioned and that the output voltage is within the recommended range. Additionally, consider the propagation delay and signal skew when using the device as a level shifter.
  • The 74CBTLV1G125GS,132 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Ensure that the device is handled in an ESD-protected environment, and consider adding external ESD protection devices if necessary.
